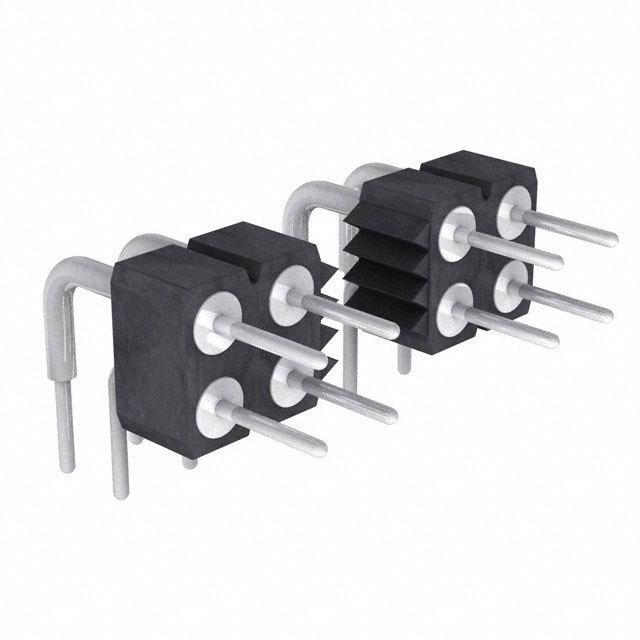

Same model may have multiple batches, images only for reference.

499-80-244-10-009101

Name: 499-80-244-10-009101
Brand: Preci-Dip
SKU: 766548
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	499-80-244-10-009101
Manufacturer	Preci-Dip
Catalog	Rectangular Connectors
Description	CONN HDR 44POS 2.54MM T/H R/A
Datasheet	499-80-244-10-009101 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Preci-Dip
Series	499
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Style	Board to Board
Shrouding	Unshrouded
Number of Positions	44
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.157" (4.00mm)
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.200" (5.08mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature Range	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	3A
Voltage Rating	150VDC
Win Source Part Number	766548-499-80-244-10-009101
Popularity	Medium
Supply and Demand Status	Limited
Family Name	499
ECCN	EAR99
Country of Origin	Switzerland
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian 499-80-244-10-009101 CAD Model

Alternative Products

Description

The Preci-Dip 499 series board-to-board header connector from Preci-Dip is a high-quality connector designed for use in a variety of applications.

Voltage Rating: 150VDC
Current Rating: 3A
Fastening Type: Push-pull
Mounting Type: Through-hole, Right Angle
Contact Material: Brass
Insulation Material: Polycyclohexylenedimethylene terephthalate (PCT), Polyester, Glass Filled
Shrouded: Unshrouded
Row Spacing: 0.100" (2.54mm)
Contact Length: 0.157" (4.00mm)
Contact Finish (Mating and Post): Tin
Insulation Color: Black
Alternative Parts: TLW-122-01-LM-D-RA, TLW-122-01-H-D-LA, TLW-122-01-F-D-RA
Country of Origin: Switzerland
Estimated EOL Date: 2028
