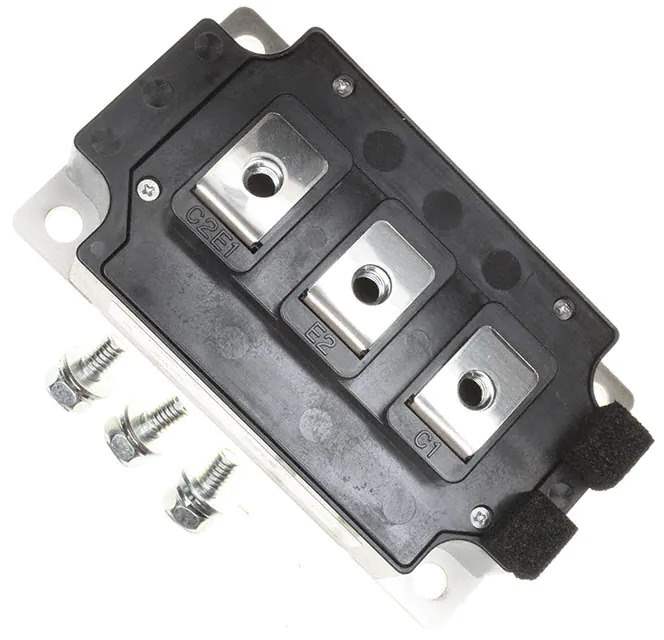

CM300DY-24A Real Image
Same model may have multiple batches, images only for reference.

CM300DY-24A

Part No CM300DY-24A
Manufacturer Powerex Inc.
Catalog IGBTs - Modules
Description IGBT MOD 1200V 300A 1890W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - IGBT Modules
Mfr Powerex Inc.
Series IGBTMOD™
Package Bulk
Product Status Discontinued
Configuration Half Bridge
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 300 A
Power - Max 1890 W
Vce(on) (Max) @ Vge, Ic 3V @ 15V, 300A
Current - Collector Cutoff (Max) 1 mA
Input Capacitance (Cies) @ Vce 47 nF @ 10 V
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 579378-CM300DY-24A
Ultra Librarian 3D Model Ultra Librarian CM300DY-24A CAD Model

Description

The CM300DY-24A is a high-performance IGBT module designed for use in a wide range of electronic applications.

  • Series: IGBTMOD™
  • Configuration: Half Bridge
  • Maximum Power Rating: 1890 W
  • Voltage Collector-Emitter Breakdown: 1200 V
  • Maximum Collector Current: 300 A
  • Vce(on): 3V @ 15V and 300A
  • Input Capacitance: 47 nF @ 10 V
  • Mounting Type: Chassis Mount
  • Operating Temperature: -40°C to 150°C
  • Status: Discontinued
  • Manufacturer: Powerex Inc.
