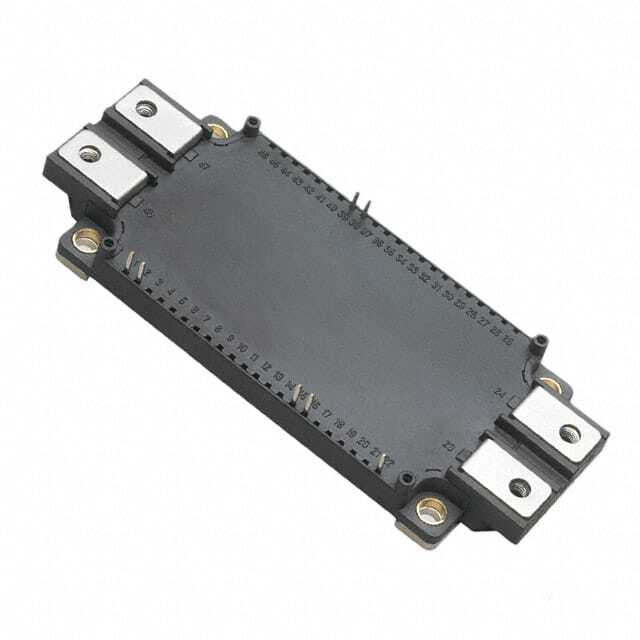

Same model may have multiple batches, images only for reference.
CM300DX-24S
Same model may have multiple batches, images only for reference.

CM300DX-24S

Part No CM300DX-24S
Manufacturer Powerex Inc.
Catalog IGBTs - Modules
Description IGBT MOD 1200V 300A 2270W / IGBT Module Half Bridge 1200 V 300 A 2270 W Chassis Mount Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - IGBT Modules
Mfr Powerex Inc.
Series IGBTMOD™
Package Bulk
Product Status Discontinued
Configuration Half Bridge
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 300 A
Power - Max 2270 W
Vce(on) (Max) @ Vge, Ic 2.15V @ 15V, 300A
Current - Collector Cutoff (Max) 1 mA
Input Capacitance (Cies) @ Vce 30 nF @ 10 V
Input Standard
NTC Thermistor Yes
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 915573-CM300DX-24S
Ultra Librarian 3D Model Ultra Librarian CM300DX-24S CAD Model

Description

The 915573-CM300DX-24S is a discontinued IGBT module from the IGBTMOD™ series by Powerex Inc..

  • Series: IGBTMOD™
  • Application: discrete semiconductor products, specifically for transistors and IGBT modules
  • Configuration: half-bridge
  • Maximum Power Rating: 2270 W
  • Voltage Collector-Emitter Breakdown: 1200 V
  • Maximum Collector Current: 300 A
  • Mounting: chassis mount
  • Package: module package
  • Status: Discontinued
