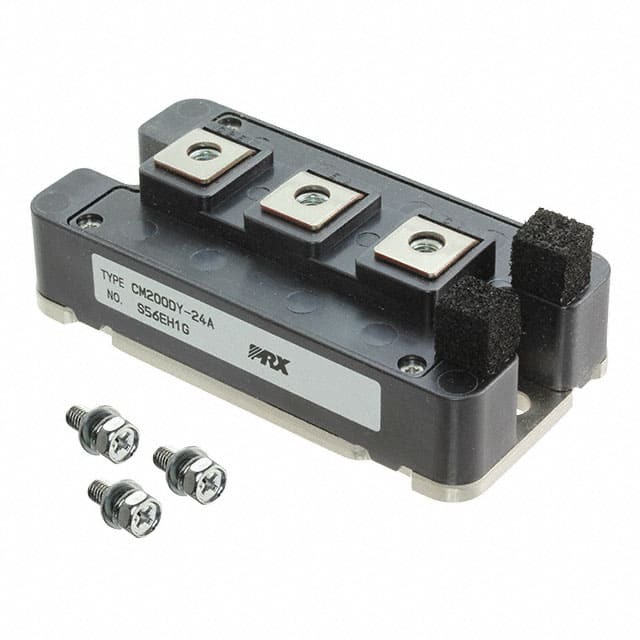

Part No CM200DY-24A
Manufacturer Powerex Inc.
Catalog IGBTs - Modules
Description IGBT MOD 1200V 200A 1340W / IGBT Module Half Bridge 1200 V 200 A 1340 W Chassis Mount Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - IGBT Modules
Mfr Powerex Inc.
Series IGBTMOD™
Package Bulk
Product Status Discontinued
Configuration Half Bridge
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 200 A
Power - Max 1340 W
Vce(on) (Max) @ Vge, Ic 3V @ 15V, 200A
Current - Collector Cutoff (Max) 1 mA
Input Capacitance (Cies) @ Vce 35 nF @ 10 V
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 915562-CM200DY-24A
Ultra Librarian 3D Model Ultra Librarian CM200DY-24A CAD Model

Description

The 915562-CM200DY-24A is an IGBT module designed for power management applications from Powerex Inc.

  • Product Type: IGBT Module
  • Series: IGBTMOD™
  • Packaging: Bulk
  • Standard Package: 1 piece
  • Maximum Power Rating: 1340W
  • Configuration: Half-Bridge
  • Voltage Collector-Emitter Breakdown: 1200V
  • Maximum Collector Current: 200A
  • Vce(on): 3V @ 15V and 200A
  • Input Capacitance: 35nF @ 10V
  • NTC Thermistor: Not Included
  • Mounting Type: Chassis Mount
  • Package: Module
  • Operating Temperature: -40°C to 150°C
  • Manufacturer: Powerex Inc.
  • Status: Discontinued
