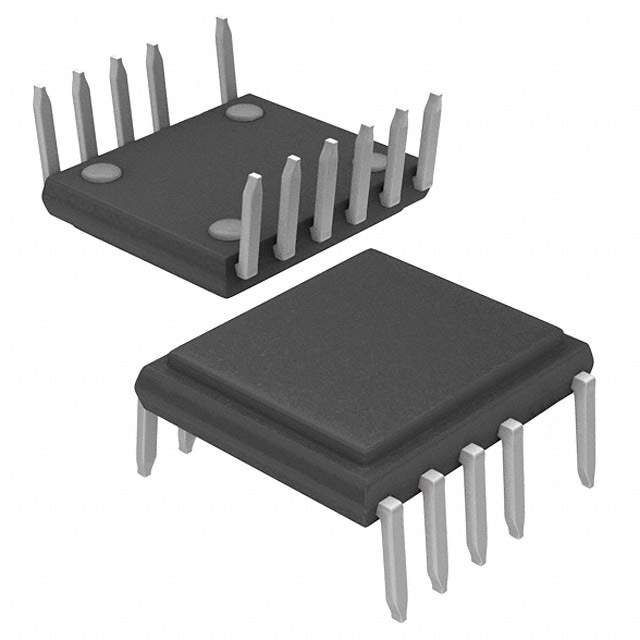

TOP266VG Real Image
Same model may have multiple batches, images only for reference.

TOP266VG

Part No TOP266VG
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC OFFLINE SW PWM OCP OVP 12EDIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Power Integrations
Standard Package 48
Category Integrated Circuits(ICs)
Family PMIC - AC DC Converters Offline Switchers
Series TOPSwitch-JX
Packaging Tube
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 725V
Topology Flyback
Duty Cycle 78%
Frequency - Switching 66kHz 132kHz
Power (Watts) 39W
Fault Protection Current Limiting Over Load Over Temperature Over Voltage Short Circuit
Control Features Frequency Control
Operating Temperature Range -40°C ~ 150°C (TJ)
Package 12-SDIP (0.412" 10.46mm) Exposed Pad
Manufacturer Device Package eDIP-12
Mounting Style Through Hole
Catalog AC DC Converters Offline Switchers
Win Source Part Number 091042-TOP266VG
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TOP266VG CAD Model

Description

The TOP266VG is an offline switcher integrated circuit from Power Integrations, belonging to the TOPSwitch-JX family.

  • Package: 12-SDIP (0.412" 10.46mm) exposed pad
  • Standard Package: 48 units
  • Power Rating: 39W
  • Output Isolation: isolated
  • Application: AC DC converters
  • Voltage Breakdown: 725V
  • Topology: flyback
  • Duty Cycle: 78%
  • Switching Frequency: 66kHz to 132kHz
  • Fault Protection: current limiting, over load, over temperature, over voltage, and short circuit protection
  • Supply and Demand Status: balanced
