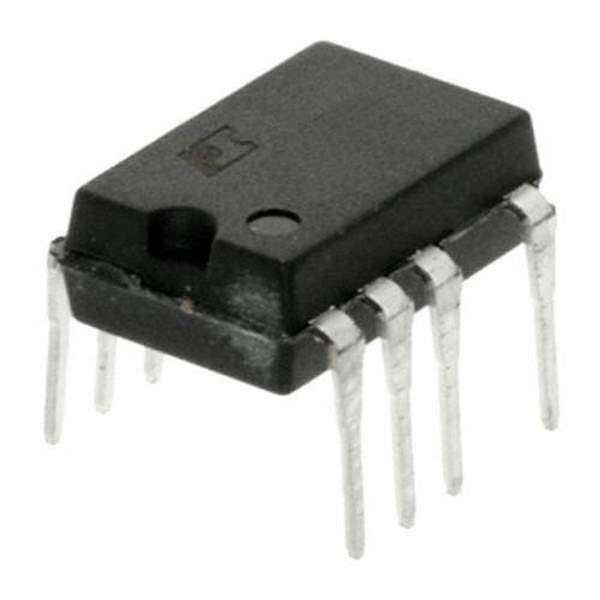

TOP253MN Real Image
Same model may have multiple batches, images only for reference.

TOP253MN

Part No TOP253MN
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC OFFLINE SWIT PROG OVP 10CSDIP / AC to DC Switching Converter Off-Line Switcher 9-Pin SDIP-C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube/Rail
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Flyback
Duty Cycle 78%
Frequency - Switching 66kHz
Power (Watts) 25W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Operating Temperature -40°C to 150°C (TJ)
Case / Package SDIP-10C
Mounting Through Hole
Win Source Part Number 043244-TOP253MN
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name TOP253
Introduction Date August 01, 2008
ECCN EAR99
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian TOP253MN CAD Model

Description

The TOP253MN is a 25W flyback power supply controller from Power Integrations.

  • Power: 25W
  • Output Isolation: Yes
  • Internal Switch: Yes
  • Breakdown Voltage: 700V
  • Duty Cycle: 78%
  • Switching Frequency: 66kHz
  • Package: SDIP-10C
  • Fault Protection: Current Limiting, Over Temperature, and Over Voltage Protection
  • Estimated EOL Date: 2022
