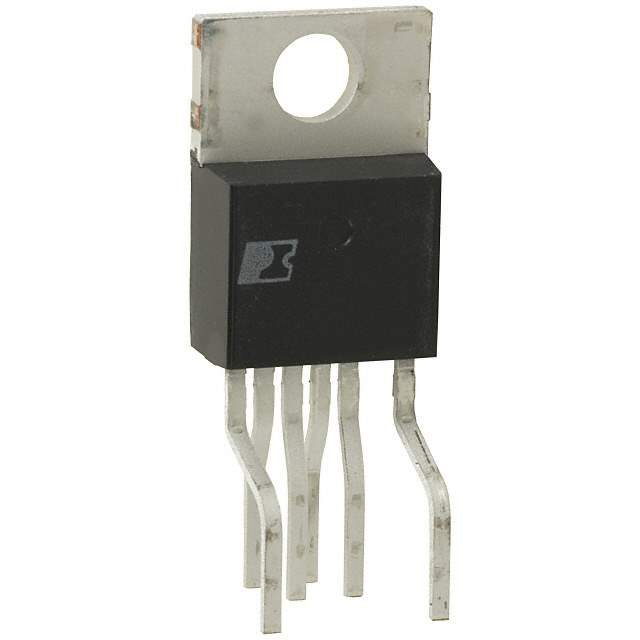

TOP244Y Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Bulk
Status Obsolete
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Flyback
Duty Cycle 66.5%
Switching Frequency 66kHz ~ 132kHz
Power (W) 65W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Features Frequency Control
Temperature Range - Operating -40°C ~ 150°C
Manufacturer Package TO-220-7 (Formed Leads), 6 Leads
Supplier Device Package TO-220-7C
Mounting Style Through Hole
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Win Source Part Number 1271620-TOP244Y
Manufacturer Homepage www.powerint.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TOP244Y CAD Model

Description

The 1271620-TOP244Y is a flyback topology integrated circuit with an isolated output and internal switch.

  • Topology: Flyback
  • Output: Isolated
  • Internal Switch: Yes
  • Voltage Breakdown: 700V
  • Duty Cycle: 66.5%
  • Fault Protection: Current limiting, over temperature, and over voltage
  • Frequency Control: Yes
  • Operating Temperature: -40°C to 150°C
  • Package: TO-220-7C
  • Leads: 6
  • Status: Obsolete
  • Switching Frequency: 66kHz to 132kHz
  • Power Rating: 65W
  • Supplier: Power Integrations
  • ECCN: EAR99
