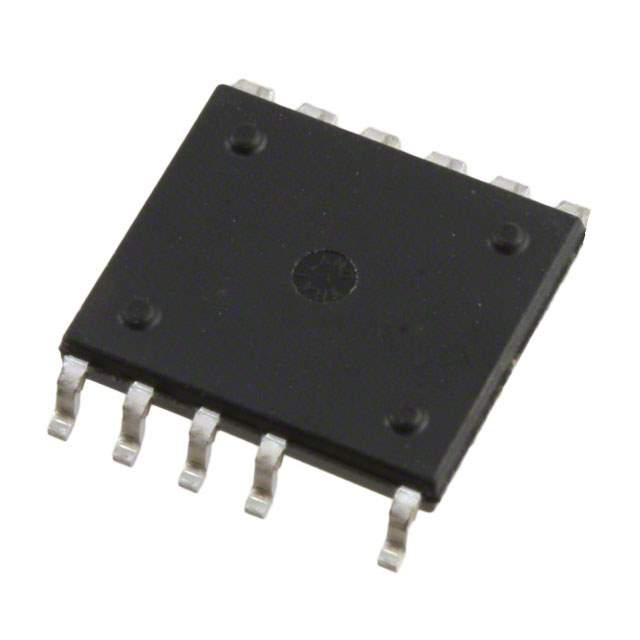

TNY286KG Real Image
Same model may have multiple batches, images only for reference.

TNY286KG

Part No TNY286KG
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description Energy-Efficient, Off-Line Switcher With Line Compensated Overload Power
Datasheet
TNY286KG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Power Integrations
Series TinySwitch-4
Packaging Tube
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 725V
Topology Flyback
Duty Cycle 67%
Frequency - Switching 124kHz ~ 140kHz
Power (Watts) 10W
Fault Protection Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit
Control Features EN
Operating Temperature Range -40°C ~ 150°C (TJ)
Package 12-BESOP (0.350", 8.89mm Width) 11 Leads, Exposed Pad
Manufacturer Package 12-ESOP
Mounting SMD
Win Source Part Number 1271573-TNY286KG
Manufacturer Homepage www.powerint.com
Popularity Medium
Supply and Demand Status Limited
Family Name TNY286
Introduction Date September 25, 2012
ECCN EAR99
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian TNY286KG CAD Model

Description

The TNY286KG electronic component is a product of Power Integrations.

  • Series: TinySwitch-4
  • Package: 12-BESOP (0.350", 8.89mm Width) 11 Leads, Exposed Pad
  • Maximum Power: 10W
  • Isolation: Isolated
  • Voltage Breakdown: 725V
  • Topology: Flyback
  • Duty Cycle: 67%
  • Switching Frequency: 124kHz ~ 140kHz
  • Popularity: Medium
  • Supply: Limited
  • ECCN: Verify before purchase
  • EOL Date: Estimated, verify before purchase
