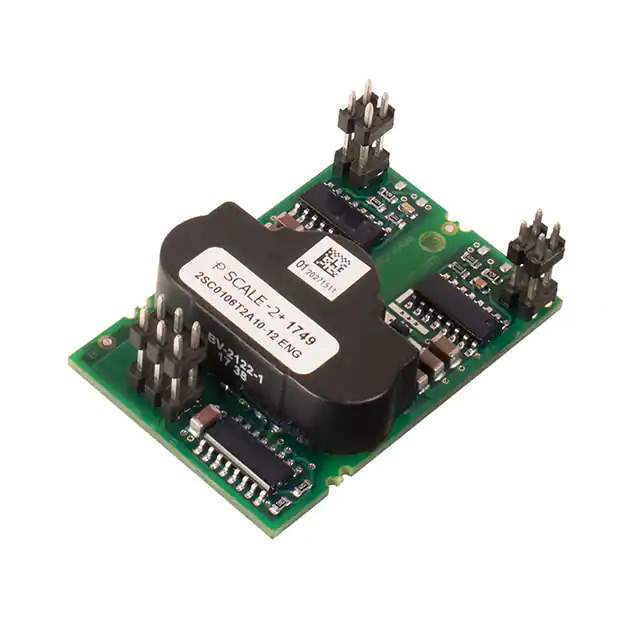

2SC0106T2A1-12

Name: 2SC0106T2A1-12
Brand: Power Integrations
SKU: 855133
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	2SC0106T2A1-12
Manufacturer	Power Integrations
Catalog	PMIC - Gate Drivers
Description	IC GATE DRVR HALF-BRIDGE MODULE / Half-Bridge Gate Driver IC Module
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr	Power Integrations
Series	SCALE™-2+
Package	Tray
Product Status	Active
Programmable	Not Verified
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	IGBT
Voltage - Supply	14.5V ~ 15.5V
Current - Peak Output (Source, Sink)	6A, 6A
High Side Voltage - Max (Bootstrap)	1200 V
Rise / Fall Time (Typ)	20ns, 13ns
Temperature Range - Operating	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Package / Case	Module
Supplier Device Package	Module
Base Product Number	2SC0106
Standard Package	30 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8473.30.1180
Win Source Part Number	855133-2SC0106T2A1-12
Ultra Librarian 3D Model	Ultra Librarian 2SC0106T2A1-12 CAD Model

Description

The 855133-2SC0106T2A1-12 is a gate driver integrated circuit (IC) from Power Integrations.

Series: SCALE™-2+
Application: Power management
Configuration: Half-bridge driven with independent channels
Function: IGBT gate control
Peak Output Current (Source): 6A
Peak Output Current (Sink): 6A
High-Side Voltage: Up to 1200V
Rise Time: 20ns
Fall Time: 13ns
Voltage Supply Range: 14.5V to 15.5V
Temperature Range: -40°C to 105°C
Mounting: Surface mountable
Package: Module
