Same model may have multiple batches, images only for reference.

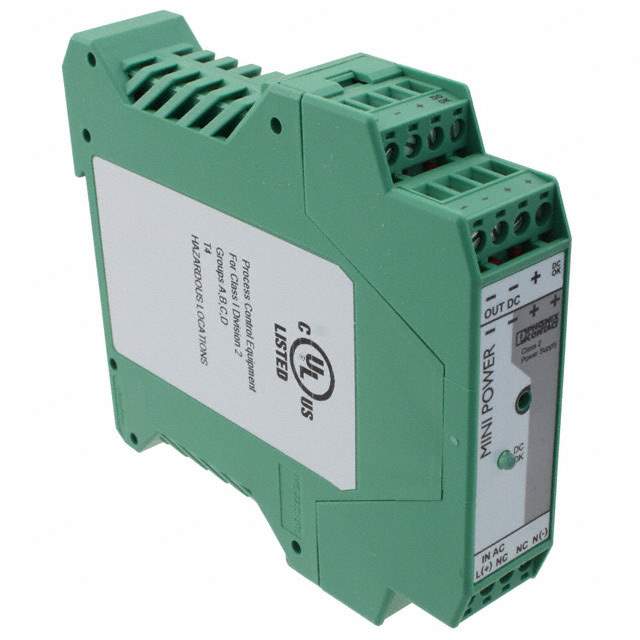

MINI-PS-100-240AC/5DC/3 Real Image
Same model may have multiple batches, images only for reference.

MINI-PS-100-240AC/5DC/3

Part No MINI-PS-100-240AC/5DC/3
Manufacturer Phoenix Contact
Catalog OEM Parts (M - N)
Description Ac/dc Din Rail Power Supply, Switch Mode, Adjustable, Fixed, 85 V, 264 V, 15 W, 5 V, 3 A Rohs Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Current - Output 1 3 A
Efficiency 73 %
Height 99 mm
Length 114.5 mm
Max Input Voltage (AC) 264 V
Maximum Operating Temperature 70 °C
Max Output Power 15 W
Max Voltage Rating (AC) 264 V
Min Input Voltage (AC) 85 V
Min Operating Temperature -25 °C
Number of Outputs 1
Number of Pins 8
Output Current 3 A
Output Power 15 W
Output Voltage 5 V
REACH SVHC Unknown
RoHS Compliant
Voltage - Output 1 5 V
Width 22.5 mm
Win Source Part Number 1078848-MINI-PS-100-240AC/5DC/3
Categories OEM Parts(M-N)
Manufacturer Phoenix Contact
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian MINI-PS-100-240AC/5DC/3 CAD Model

Description

The Phoenix Contact 1078848-MINI-PS-100-240AC/5DC/3 is an OEM part that falls under the M-N category.

  • Length: 114.5mm
  • Height: 99mm
  • Pins: 8
  • Output: 1
  • Output Current: 3A
  • Output Voltage: 5V
  • Efficiency: 73 percent
  • Output Power: 15W
  • Width: 22.5mm
  • Alternative Parts (cross-reference): DR-30-5, DPX1524WS05, NDY4805C, RW-1205S, NDTS1205C, UEI15-050-Q12P-CMINI-PS-100-240AC-5DC-3, and MINI-PS-100-240AC5DC3
  • Manufacturer: Phoenix Contact
  • Win Source Part Number: 1078848-MINI-PS-100-240AC/5DC/3
