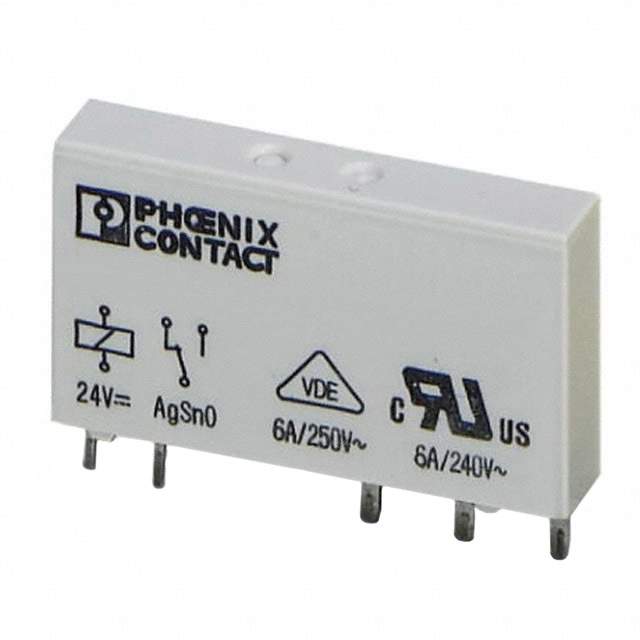

2961105 Real Image
Same model may have multiple batches, images only for reference.

2961105

Part No 2961105
Manufacturer Phoenix Contact
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 6A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
Datasheet
2961105 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Phoenix Contact
Series REL-MR
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 6 A
Switching Voltage 250VAC, 250VDC - Max
Coil Current 7 mA
Coil Type Non Latching
Termination Style PC Pin
Operate Time 5 ms
Release Time 2.5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 3.4 kOhms
Standard Package 10 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 847438-2961105
Ultra Librarian 3D Model Ultra Librarian 2961105 CAD Model

Description

The REL-MR series from Phoenix Contact offers reliable power relays for various applications.

  • Contact Configuration: SPDT (1 Form C)
  • Contact Rating: 6A
  • Coil Voltage: 24VDC
  • Coil Resistance: 3.4 kOhms
  • Coil Current: 7mA
  • Operate Time: 5ms
  • Release Time: 2.5ms
  • Termination Style: PC Pin
  • Temperature Range: -40°C to 85°C
  • Housing Material: High-Quality Materials
  • Series: REL-MR
  • Standard Package: 10 pcs
