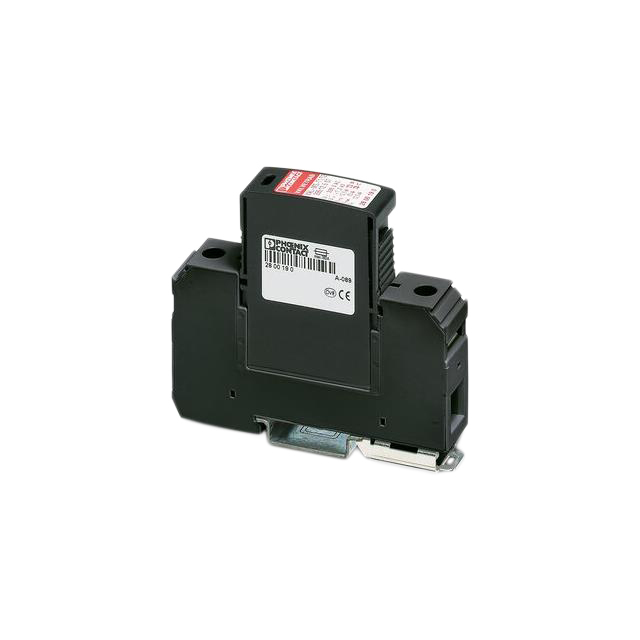

2801160

Part No 2801160
Manufacturer Phoenix Contact
Catalog Surge Protection Devices (SPDs)
Description SPD TYPE 1/TYPE 2 1.17KVDC MCOV
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Type Type 1, Type 2
Form Base + Module
Number of Poles 1
Voltage - Continuous Operating (Max) (MCOV) 1.17kVDC
Current - Discharge (Nom) (8/20µS) 15 kA
Current - Discharge (Max) (8/20µS) 40 kA
Current - Short Circuit Rating (SCCR) 50 kA
Voltage - Protection Rating (VPR) 3 kV
Voltage - Protection Level (VP) (2416) 3.5 kV
Temperature Range - Operating -40°C ~ 80°C
Mounting Type DIN Rail
Approval Agency CB, cUR, EAC, UR
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1606995-2801160
Ultra Librarian 3D Model Ultra Librarian 2801160 CAD Model
