Same model may have multiple batches, images only for reference.

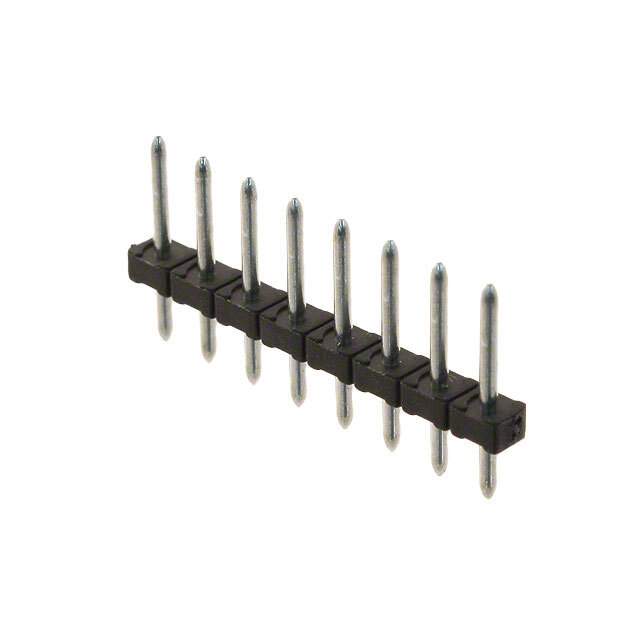

1945151 Real Image
Same model may have multiple batches, images only for reference.

1945151

Part No 1945151
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description Conn Unshrouded HDR 8 POS 3.5mm Solder ST Through Hole Cardboard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals UL
Color Black
Contact Material Tin
Contact Plating Tin
Current 10 A
Current Rating 8 A
Depth 2.8 mm
Flammability Rating UL94 V-0
Housing Color Black
Housing Material Polyamide
Lead Free Lead Free
Length 28 mm
Max Current Rating 6 A
Mount Through Hole
Number of Contacts 8
Number of Levels 1
Number of Positions 8
Number of Positions Per Level 8
Number of Rows 1
Orientation Straight
Packaging Bulk
Pitch 3.5 mm
RoHS Compliant
Termination Solder
Voltage 300 V
Voltage Rating 160 V
Weight 869.990166 mg
Width 24.5 mm
Win Source Part Number 1177047-1945151
Categories Terminal Blocks
Manufacturer Phoenix Contact
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1945151 CAD Model

Description

The 1177047-1945151 is a terminal block manufactured by Phoenix Contact.

  • It has a black color and is made of polyamide housing material.
  • The terminal block has a voltage rating of 160V and a current rating of 8A.
  • It has 8 contacts, 1 level, and 1 row.
  • The orientation is straight, and the contact plating is tin.
  • The supply and demand status is limited, and it is RoHS compliant.
