Same model may have multiple batches, images only for reference.

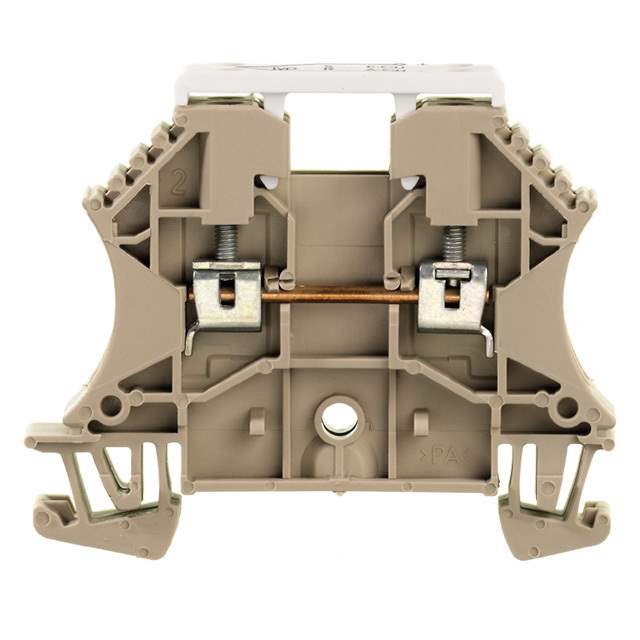

1024400000 Real Image
Same model may have multiple batches, images only for reference.

1024400000

Part No 1024400000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description Terminal Block, Screw, Clamping Yoke, 2 Poles, 55V, 8A, 0.5 ... 2.5mm², Dark Beige
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CE, IEC
Color Beige
Current 1 A
Depth 10.2 mm
Flammability Rating UL94 V-0
Height 50 mm
Housing Color Beige
Housing Material Nylon
Insulation Material Thermoplastic
Lead Free Lead Free
Length 60 mm
Max Operating Temperature 120 °C
Min Operating Temperature -50 °C
Mount Through Hole
Number of Circuits 1
Number of Contacts 2
Number of Levels 1
Number of Positions 2
Number of Rows 2
Orientation Straight
Radiation Hardening No
RoHS Compliant
Stripping Length 10 mm
Terminal Width 10.2 mm
Termination Screw
Weight 16.95 g
Width 10.2 mm
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Win Source Part Number 1171595-1024400000
Categories Terminal Blocks
Manufacturer Weidmuller
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1024400000 CAD Model

Description

The Weidmuller 1171595-1024400000 is a beige terminal block with screw termination.

  • Termination: Screw
  • Positions: Two
  • Levels: One
  • Contacts: Two
  • Circuits: One
  • Length: 60 mm
  • Height: 50 mm
  • Width: 10.2 mm
  • Housing Material: Nylon
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Flammability Rating: UL94 V-0
  • Wire Gauges: 12 AWG to 26 AWG
  • Operating Temperature Range: -50 °C to 120 °C
