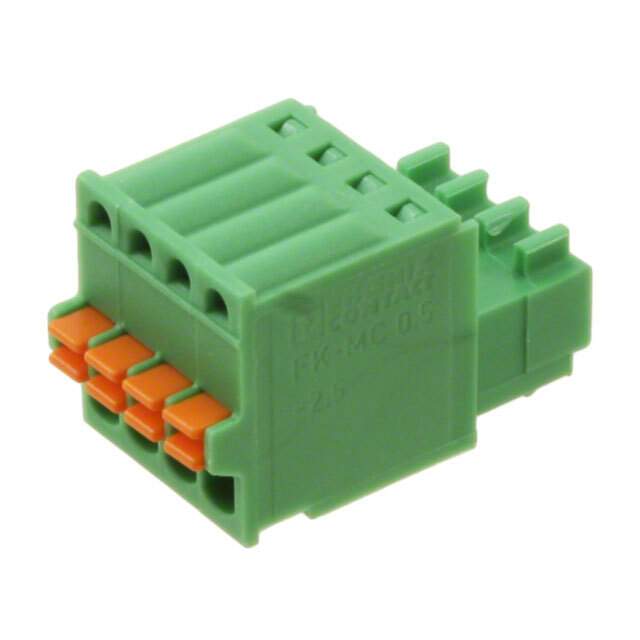

Same model may have multiple batches, images only for reference.

1881341

Name: 1881341
Brand: Phoenix Contact
SKU: 1332307
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1881341
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 4POS STR 2.5MM / 4 Position Terminal Block Plug, Female Sockets 0.098" (2.50mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	4
Positions Per Level	4
Number of Levels	1
Pitch	0.098" (2.50mm)
Plug Wire Entry	180°
Termination Style	Screwless - Leg Spring, Push-In Spring
Mounting	Free Hanging (In-Line)
Current - IEC	4A
Voltage - IEC	320 V
Current - UL	4 A
Voltage - UL	125 V
Wire Gauge or Range - AWG	20-28 AWG
Wire Gauge or Range - mm2	0.14-0.5mm²
Color	Green
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Wire Strip Length	8mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.463" (11.76mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	277-1432,FK-MC 0.5/4-ST-2.5,FK-MC0.5/4-ST-2.5
Standard Package	50
Win Source Part Number	1332307-1881341
Ultra Librarian 3D Model	Ultra Librarian 1881341 CAD Model

Description

The Phoenix Contact 1332307-1881341 is a plug female socket connector.

Positions per Level: 4
Termination Style: Screwless Leg Spring, Push-In Spring
Pitch: 0.098 inches
Wire Range: 20-28 AWG
Current Rating: 4A
Voltage Rating (IEC): 320V
Voltage Rating (UL): 125V
Material: Polyamide (PA) Nylon
Flammability Rating: UL94 V-0
Mounting: Free-Hanging (In-Line)
Wire Strip Length: 8mm
Standard Package: 50
