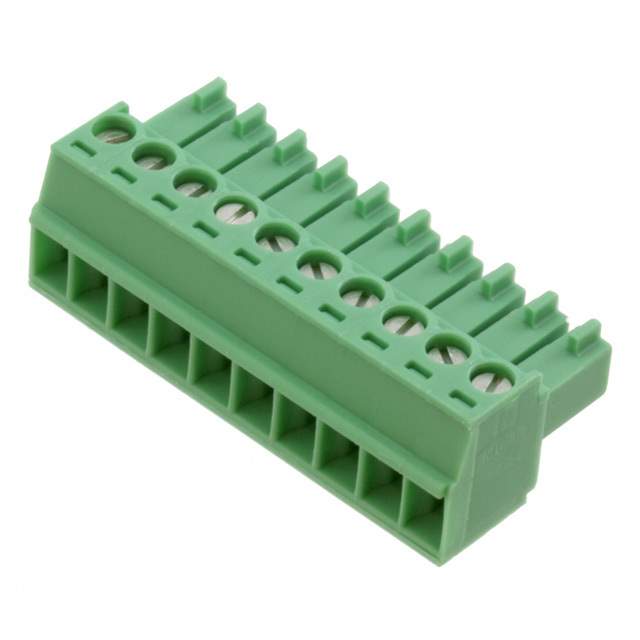

Same model may have multiple batches, images only for reference.

1840447

Name: 1840447
Brand: Phoenix Contact
SKU: 1332263
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1840447
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 10POS STR 3.5MM / 10 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	10
Positions Per Level	10
Number of Levels	1
Pitch	0.138" (3.50mm)
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Mounting	Free Hanging (In-Line)
Current - IEC	8A
Voltage - IEC	320 V
Current - UL	8 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	14-30 AWG
Wire Gauge or Range - mm2	0.14-1.5mm2
Color	Green
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Screw Size	M2
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Wire Strip Length	7mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.437" (11.10mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	1840447-NDR,277-5730,1840447-ND,MC1,5/10-ST-3,5
Standard Package	50
Win Source Part Number	1332263-1840447
Ultra Librarian 3D Model	Ultra Librarian 1840447 CAD Model

Alternative Products

Description

The Phoenix Contact 1332263-1840447 is a plug female socket connector.

Positions per Level: 10
Termination Style: screw rising cage clamp
Pitch: 0.138 inches
Wire Ranges: from 14-30 AWG
Current Rating: 8A
Voltage Rating (IEC): 320V
Voltage Rating (UL): 300V
Material: high-quality polyamide (PA) nylon material
Flammability Rating: UL94 V-0
Screw Size: M2
Torque: 0.22-0.25 Nm (1.9-2.2 Lb-In)
Mounting: free-hanging (in-line)
Wire Strip Length: 7mm
Standard Package: 50
