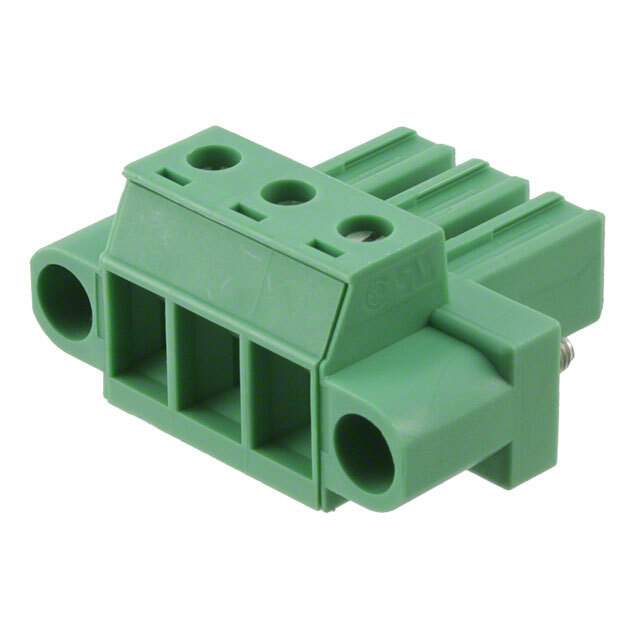

The Phoenix Contact 1332124-1828252 is a 3-position plug female socket terminal block with a pitch of 0.300 inches (7.62mm).

• Number of Positions: 3
• Levels: 1
• Positions Per Level: 3
• Plug Wire Entry: 180 degrees
• Termination Style: screw - rising cage clamp
• Current Rating (IEC): 20A
• Current Rating (UL): 5A
• Voltage Rating (IEC): 1kV
• Voltage Rating (UL): 600V
• Wire Gauge or Range: 10-30 AWG or 0.2-4mm²
• Color: green
• Contact Mating Finish: tin
• Mating Flange: Yes
• Housing Material: polyamide (PA) and nylon
• Material Flammability Rating: UL94 V-0
• Standard Package: 50
• Mounting: free hanging (in-line)
• Screw Size: M3
• Insulation Height: 0.713 inches (18.10mm)
• Wire Strip Length: 7mm
• MSL Level: 1 (unlimited)
• HTSUS: 8536.69.8000
• RoHS Compliant: Yes
