Same model may have multiple batches, images only for reference.

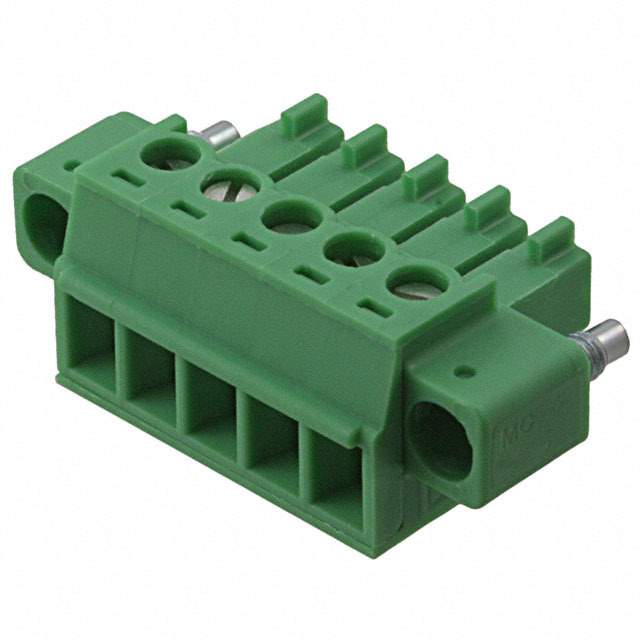

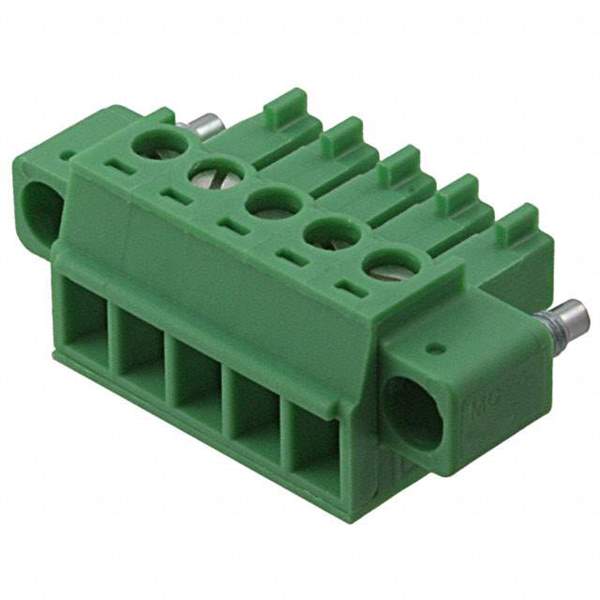

1827732

Name: 1827732
Brand: Phoenix Contact
SKU: 809356
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1827732
Manufacturer	Phoenix Contact
Catalog	Terminal Blocks
Description	TERM BLOCK PLUG 5POS STR 3.81MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	5
Positions Per Level	5
Number of Levels	1
Pitch	0.150" (3.81mm)
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Mounting Style	Free Hanging (In-Line)
Current - IEC	8A
Voltage - IEC	320V
Current - UL	8A
Voltage - UL	300V
Wire Gauge or Range - AWG	14-30 AWG
Wire Gauge or Range - mm2	0.14-1.5mm2
Color	Green
Contact Mating Finish	Tin
Features	Mating Flange
Material Flammability Rating	UL94 V-0
Screw Size	M2
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Wire Strip Length	7mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.437" (11.10mm)
Manufacturer Pack Quantity	250
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	809357-1827732
Ultra Librarian 3D Model	Ultra Librarian 1827732 CAD Model

Description

The Phoenix Contact 809357-1827732 is a green-colored, free-hanging (in-line) mounted, 5-position header with a pitch of 0.150 inches (3.81mm).

Wire Gauge: 14-30 AWG
Voltage Rating (UL): 300V
Voltage Rating (IEC): 320V
Current Rating (UL and IEC): 8A
Wire Termination Style: Screw-rising cage clamp
Mating Flange: Yes
Housing Material: Polyamide (PA)
Flammability Rating: UL94 V-0
Torque-Screw: 0.22-0.25 Nm (1.9-2.2 Lb-In)
Screw Size: M2
Insulation Height: 0.437 inches (11.10mm)
Wire Strip Length: 7mm
Supply and Demand Status: Limited
Manufacturer Pack Quantity: 250
