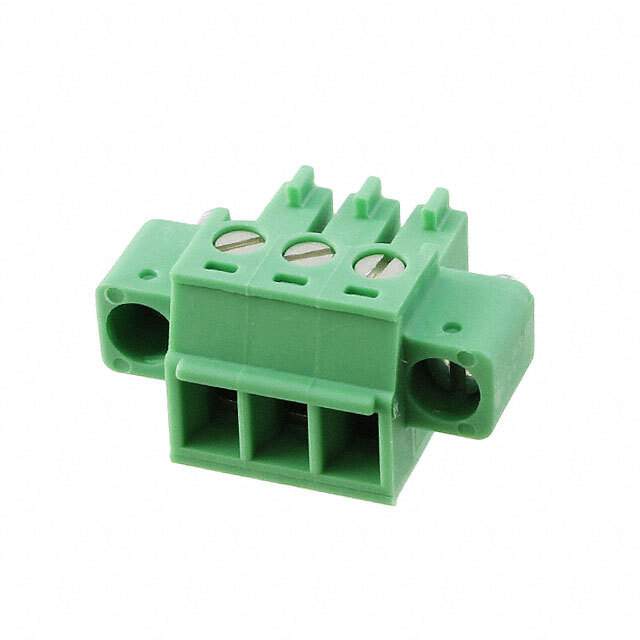

The Phoenix Contact Plug Female Sockets Connector is a reliable and high-quality connector that is ideal for use in terminal blocks, headers, plugs and sockets.

• Number of Positions: 3
• Positions Per Level: 3
• Pitch: 0.150" (3.81mm)
• Termination Style: Screw-Rising Cage Clamp
• Current Rating: 8A
• Voltage Rating: 320V (IEC), 8A, 300V (UL)
• Wire Gauge: 14-30 AWG, 0.14-1.5mm2
• Housing Material: Polyamide (PA), Nylon
• Mating Flange: Yes
• Color: Green
• Contact Mating Finish: Tin
• Torque Screw: 0.22-0.25 Nm (1.9-2.2 Lb-In)
• Screw Size: M2
• Mounting Type: Free Hanging (In-Line)
• Insulation Height: 0.437" (11.10mm)
