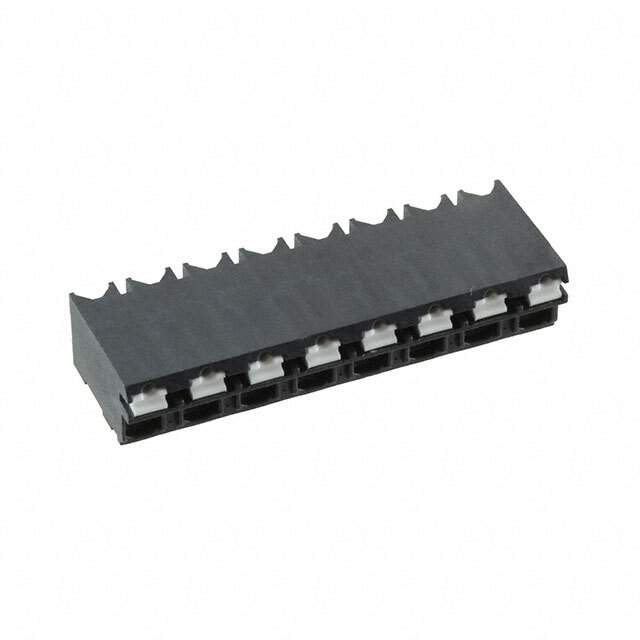

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Wire to Board
Manufacturer Phoenix Contact
Packaging Reel - TR
Number of Levels 1
Positions Per Level 8
Pitch 0.200" (5.08mm)
Mating Orientation Horizontal with Board
Current 10 A
Voltage 300 V
Wire Gauge 16-24 AWG
Mounting Through Hole
Wire Termination Screwless - Leg Spring, Push-In Spring
Color Black
Housing Material Liquid Crystal Polymer (LCP)
Contact Material - Plating Tin Plated
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 277-11697-1,277-11697,277-11697-2,277-11697-6INACTIVE,1824022-ND,277-11697-ND,SPT-THR 1 5/ 8-H-5 08 P20 R56,277-11697-6,277-11697-6-ND
Standard Package 250
Win Source Part Number 1334613-1824022
Ultra Librarian 3D Model Ultra Librarian 1824022 CAD Model

Description

The Phoenix Contact 1334613-1824022 is a wire-to-board connector designed for use in electronic applications.

  • Manufacturer: Phoenix Contact
  • Positions per Level: 8
  • Pitch: 0.200 inches (5.08mm)
  • Termination: Screwless Leg Spring or Push-In Spring Wire Termination
  • Current Rating: 10A
  • Voltage Rating: 300V
  • Contact Material: Tin Plated
  • Clamp Material: Not Specified
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Packaging: Reel
  • Standard Package: 250
  • Mounting Style: Through Hole
  • Mating Orientation: Horizontal with Board
