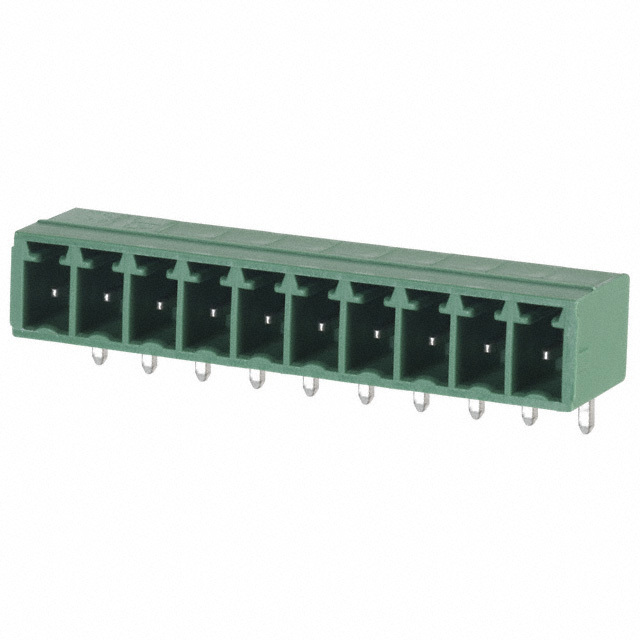

Same model may have multiple batches, images only for reference.

1803358

Name: 1803358
Brand: Phoenix Contact
SKU: WS1333210
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1803358
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 10POS 3.81MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, InterconnectsTerminal BlocksHeaders, Plugs and Sockets
Manufacturer	Phoenix Contact
Series	COMBICON MC
Packaging	Bulk
Part Status	Active
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	10
Positions Per Level	10
Number of Levels	1
Pitch	0.150" (3.81mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	8A
Voltage - IEC	250 V
Current - UL	8 A
Voltage - UL	300 V
Color	Green
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Housing Material	Polybutylene Terephthalate (PBT)
Contact Tail Length	0.134" (3.40mm)
Insulation Height	0.285" (7.25mm)
Ultra Librarian 3D Model	Ultra Librarian 1803358 CAD Model
