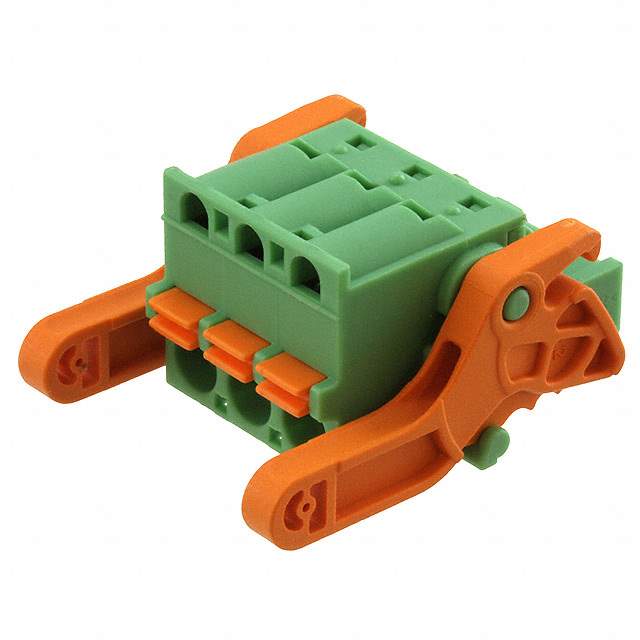

Same model may have multiple batches, images only for reference.

1792520

Name: 1792520
Brand: Phoenix Contact
SKU: 1334612
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1792520
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 3POS STR 5.08MM / 3 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	3
Positions Per Level	3
Number of Levels	1
Pitch	0.200" (5.08mm)
Plug Wire Entry	180°
Termination Style	Screwless - Push-In Spring
Mounting	Free Hanging (In-Line)
Current - IEC	12A
Voltage - IEC	630 V
Current - UL	10 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	12-26 AWG
Wire Gauge or Range - mm2	0.2-2.5mm2
Color	Green
Contact Mating Finish	Tin
Features	Ejector Latches, Retention Latches (Non-Wire Side)
Material Flammability Rating	UL94 V-0
Wire Strip Length	10mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.591" (15.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	277-2553
Standard Package	50
Win Source Part Number	1334612-1792520
Ultra Librarian 3D Model	Ultra Librarian 1792520 CAD Model

Description

The Phoenix Contact 1334612-1792520 is a plug with female sockets, suitable for connectors, interconnects, and terminal blocks.

Manufacturer: Phoenix Contact
Positions per Level: 3
Levels: 1
Pitch: 0.200 inches (5.08mm)
Wire Entry: 180 degrees
Termination Style: Screwless Push-In Spring
Current Rating: 12A (IEC) and 10A (UL)
Voltage Rating: 630V (IEC) and 300V (UL)
Wire Gauge Range: 12-26 AWG or 0.2-2.5mm2
Color: Green
Features: Ejector Latches and Retention Latches (Non-Wire Side)
Contact Mating Finish: Tin
Housing Material: Polyamide (PA) or Nylon
Material Flammability Rating: UL94 V-0
Mounting Type: Free Hanging (In-Line)
Insulation Height: 0.591 inches (15.00mm)
Wire Strip Length: 10mm
