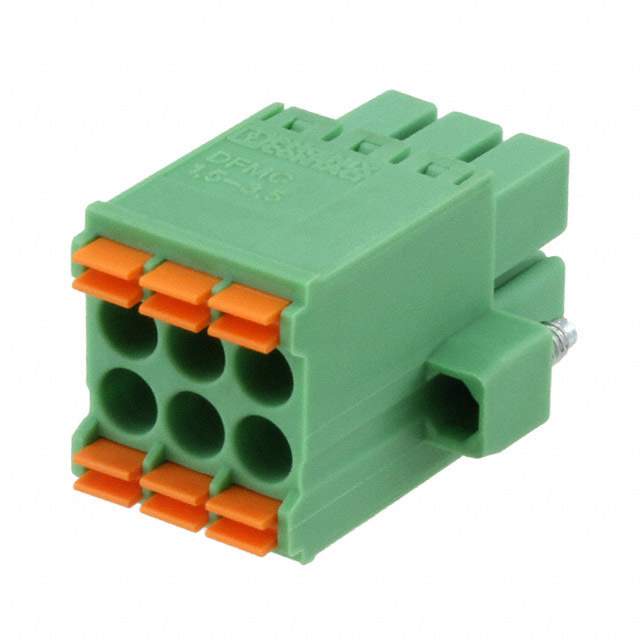

Same model may have multiple batches, images only for reference.

1790302

Name: 1790302
Brand: Phoenix Contact
SKU: 1332245
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1790302
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 6POS STR 3.5MM / 6 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
Datasheet	1790302 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	6
Positions Per Level	3
Number of Levels	2
Pitch	0.138" (3.50mm)
Plug Wire Entry	180°
Termination Style	Screwless - Push-In Spring
Mounting	Free Hanging (In-Line)
Current - IEC	8A
Voltage - IEC	250 V
Current - UL	8 A
Voltage - UL	150 V
Wire Gauge or Range - AWG	16-24 AWG
Wire Gauge or Range - mm2	0.2-1.5mm2
Color	Green
Contact Mating Finish	Tin
Features	Mating Flange
Material Flammability Rating	UL94 V-0
Wire Strip Length	10mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.522" (13.25mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	277-9783,1790302-ND,DFMC153STF35,DFMC1,5/3-STF-3,5
Standard Package	50
Win Source Part Number	1332245-1790302
Ultra Librarian 3D Model	Ultra Librarian 1790302 CAD Model

Description

The Phoenix Contact 1332245-1790302 is a plug with female sockets, suitable for connectors, interconnects, and terminal blocks.

Positions per Level: 3
Levels: 2
Pitch: 0.138 inches (3.50mm)
Plug Wire Entry: 180 degrees
Termination Style: screwless push-in spring
Current Rating (IEC): 8A
Current Rating (UL): 8A
Voltage Rating (IEC): 250V
Voltage Rating (UL): 150V
Wire Gauge Range: 16-24 AWG or 0.2-1.5mm2
Color: green
Mating Flange Feature: yes
Contact Mating Finish: tin
Housing Material: polyamide (PA) or nylon
Material Flammability Rating: UL94 V-0
Mounting Type: free hanging (in-line)
Insulation Height: 0.522 inches (13.25mm)
Wire Strip Length: 10mm
