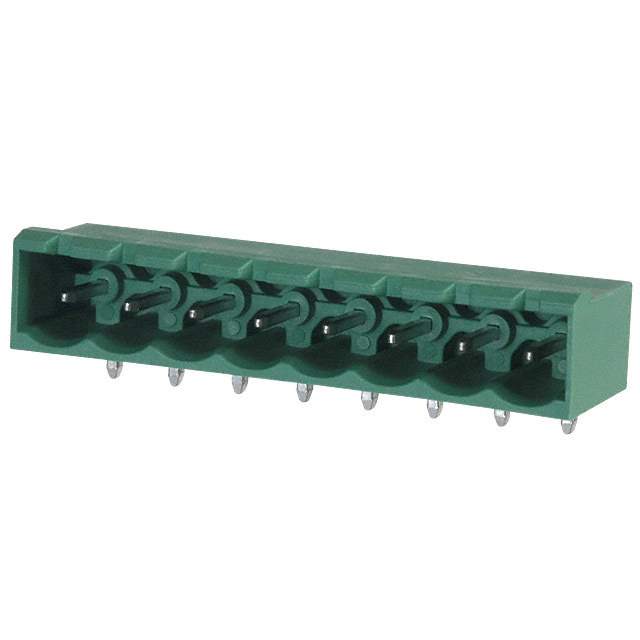

Same model may have multiple batches, images only for reference.

1757307

Name: 1757307
Brand: Phoenix Contact
SKU: 538792
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1757307
Manufacturer	Phoenix Contact
Catalog	Terminal Blocks
Description	Printed-circuit board connector - FKC 2,5/ 8-ST-5,08 - 1873113 \| TERM BLOCK HDR 8POS 90DEG 5.08MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	8
Positions Per Level	8
Number of Levels	1
Pitch	0.200" (5.08mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting Style	Through Hole
Current - IEC	12A
Voltage - IEC	400V
Current - UL	15A
Voltage - UL	300V
Color	Green
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Dielectric Material	Polyamide (PA), Nylon
Contact Tail Length	0.138" (3.50mm)
Insulation Height	0.339" (8.61mm)
Manufacturer Pack Quantity	100
MSL Level	1 (Unlimited)
Win Source Part Number	1121480-1757307
Manufacturer Homepage	www.phoenixcontact.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 1757307 CAD Model

Alternative Products

Description

The 0.200" (5.08mm) Pitch Header Connector from Phoenix Contact is a male pin shrouded connector with four sides.

Positions per Level: 8
Number of Levels: 1
Pitch: 0.200" (5.08mm)
Mounting Type: Through-hole
Current Rating (IEC): 12A
Current Rating (UL): 15A
Voltage Rating (IEC): 400V
Voltage Rating (UL): 300V
Material: Polyamide (PA) and nylon
Flammability Rating: UL94 V-0
Contact Mating Finish: Tin
