Same model may have multiple batches, images only for reference.

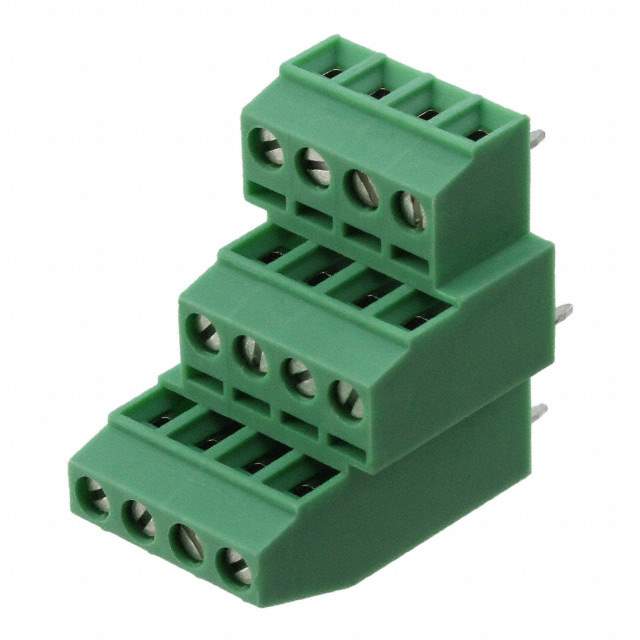

1727751 Real Image
Same model may have multiple batches, images only for reference.

1727751

Part No 1727751
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLK 4P SIDE ENT 3.81MM PCB / 4 Position Wire to Board Terminal Block Horizontal with Board 0.150" (3.81mm) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Wire to Board
Manufacturer Phoenix Contact
Packaging Bulk
Number of Levels 3
Positions Per Level 4
Pitch 0.150" (3.81mm)
Mating Orientation Horizontal with Board
Current 10 A
Voltage 300 V
Wire Gauge 16-30 AWG
Mounting Through Hole
Wire Termination Screw - Rising Cage Clamp
Color Green
Housing Material Polyamide (PA), Nylon
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Screw Thread M2
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 277-13815,1727751-ND,MK3DS 1/ 4-3,81,MK3DS1/4-3,81
Standard Package 50
Win Source Part Number 1332293-1727751
Ultra Librarian 3D Model Ultra Librarian 1727751 CAD Model

Description

The Phoenix Contact wire-to-board terminal blocks are a type of plug with a horizontal mating orientation with the board.

  • Mating Orientation: Horizontal with the Board
  • Number of Levels: 3
  • Positions Per Level: 4
  • Pitch: 0.150 inches (3.81mm)
  • Wire Gauge: 16-30 AWG
  • Current Rating: 10A
  • Termination Style: Screw-Rising Cage Clamp
  • Voltage Rating: 300V
  • Housing Material: Polyamide (PA), Nylon
  • Color: Green
  • Mounting: Through-Hole
  • Screw Thread: M2
