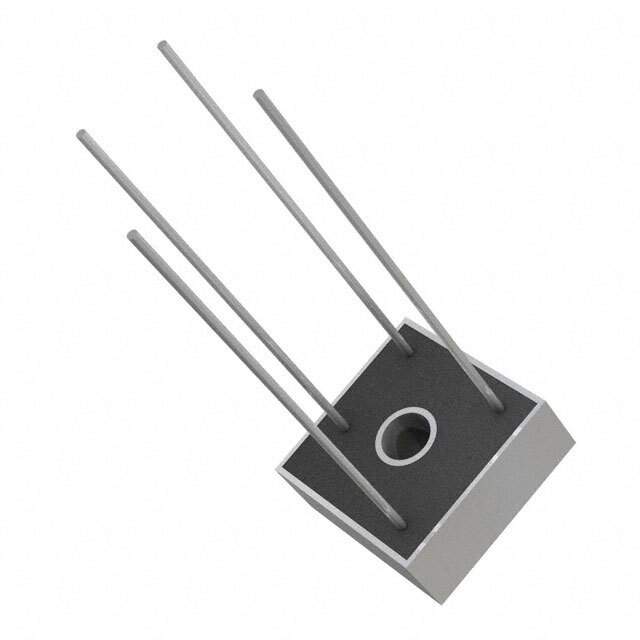

KBPC5004W-G Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 400V
Current - Average Rectified (Io) 50A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 25A
Current - Reverse Leakage @ Vr 10μA @ 400V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-Square, KBPC-W
Manufacturer Package KBPC-W
Win Source Part Number 777976-KBPC5004W-G
Popularity Medium
Supply and Demand Status Balance
Quantity per package 100
Family Name KBPC5004W
Introduction Date December 25, 2008
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian KBPC5004W-G CAD Model

Description

The Comchip Technology 777976-KBPC5004W-G is a single-phase diode. The specifications are as follows:

  • Voltage Rating: 400V
  • Maximum Average Rectified Current: 50A
  • Forward Voltage: 1.1V @ 25A
  • Reverse Leakage Current: 10μA @ 400V
  • Package: 4-Square, KBPC-W
  • Mounting: Through-hole
  • Operating Temperature Range: Up to 150°C
  • Packaging: Bulk
  • Alternative Parts: MP504W-B, DB5004PW, MB504W-BP, FDB3504PT
  • ECCN: EAR99
