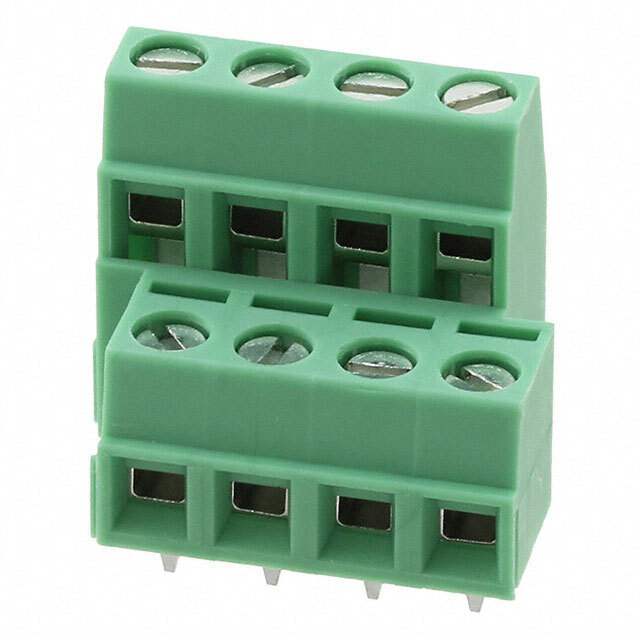

1726118 Phoenix Contact
Same model may have multiple batches, images only for reference.

1726118

Part No 1726118
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLK 4POS SIDE ENTRY 5MM PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1209260-1726118
Manufacturer Phoenix Contact
Category Connectors, Interconnects-Terminal Blocks-Wire to Board
Package Bulk
Product Status Active
Number of Levels 2
Positions Per Level 4
Pitch 0.197" (5.00mm)
Mating Orientation Horizontal with Board
Voltage 300 V
Mounting Type Through Hole
Ultra Librarian 3D Model Ultra Librarian 1726118 CAD Model

Description

PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm² , number of potentials: 8, number of rows: 2, number of positions per row: 4, product range: MKKDSN 1,5, pitch: 5 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!
