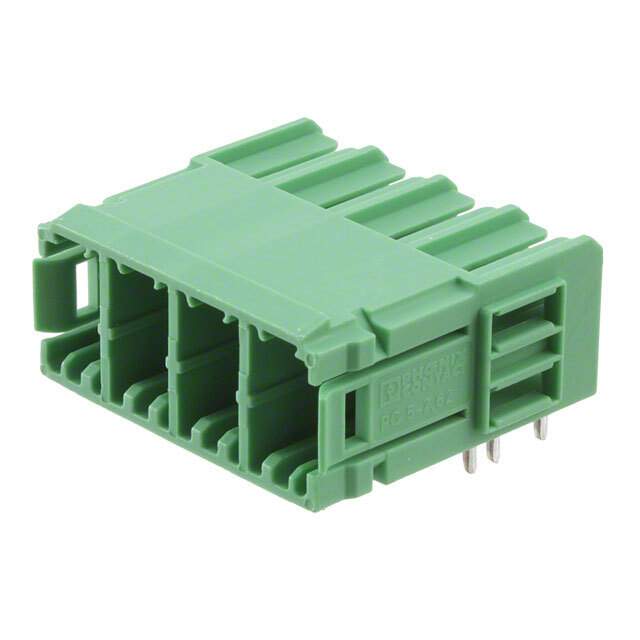

Same model may have multiple batches, images only for reference.

1720482

Name: 1720482
Brand: Phoenix Contact
SKU: 1332169
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1720482
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 4POS 90DEG 7.62MM / 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.300" (7.62mm) 90°, Right Angle Through Hole
Datasheet	1720482 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Positions Per Level	4
Number of Levels	1
Pitch	0.300" (7.62mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting	Through Hole
Current - IEC	41A
Voltage - IEC	1 kV
Current - UL	41 A
Voltage - UL	300 V
Color	Green
Contact Mating Finish	Tin
Features	Latch Lock
Material Flammability Rating	UL94 V-0
Housing Material	Polyamide (PA), Nylon
Contact Tail Length	0.197" (5.00mm)
Insulation Height	0.563" (14.30mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	277-6233,1720482-ND,PC5/4-G-7,62,PC 5/ 4-G-7,62
Standard Package	50
Win Source Part Number	1332169-1720482
Ultra Librarian 3D Model	Ultra Librarian 1720482 CAD Model

Description

The Phoenix Contact 1332169-1720482 is a 90° right-angle header with male pins and a shrouded design.

Angle: 90° Right-Angle
Type: Header with Male Pins, Shrouded
Positions per Level: 4
Levels: 1
Pitch: 0.300" (7.62mm)
Current Rating (IEC): 41A
Voltage Rating (IEC): 1 kV
Current Rating (UL): 41 A
Voltage Rating (UL): 300 V
Housing Material: Polyamide (PA), Nylon
Flammability Rating: UL94 V-0
Latch Lock: Yes
Contact Mating Finish: Tin
Color: Green
Packaging: Bulk
Standard Package: 50
