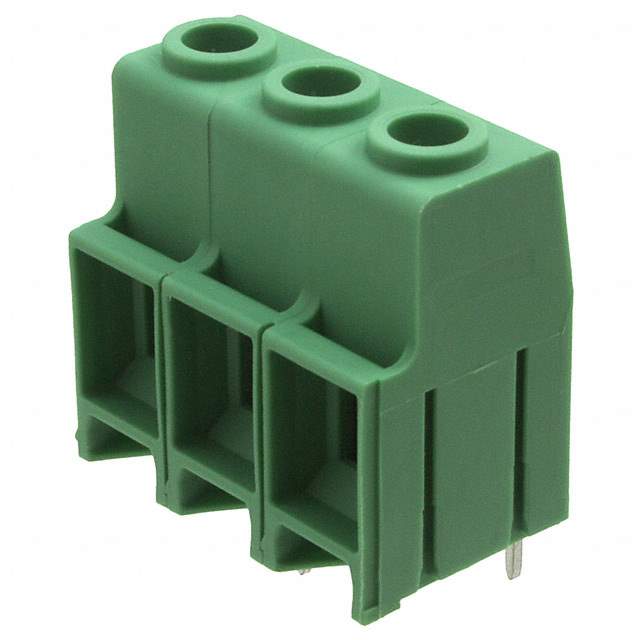

1709694 Real Image
Same model may have multiple batches, images only for reference.

1709694

Part No 1709694
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLK 3P SIDE ENT 10.16MM PCB / 3 Position Wire to Board Terminal Block Horizontal with Board 0.400" (10.16mm) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Wire to Board
Manufacturer Phoenix Contact
Packaging Bulk
Number of Levels 1
Positions Per Level 3
Pitch 0.400" (10.16mm)
Mating Orientation Horizontal with Board
Current 60 A
Voltage 600 V
Wire Gauge 6-20 AWG
Mounting Through Hole
Wire Termination Screw - Rising Cage Clamp
Features Interlocking (Side)
Color Green
Housing Material Polyamide (PA), Nylon
Torque - Screw 1.2-1.5 Nm (10.6-13.3 Lb-In)
Screw Thread M4
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 277-8589,1709694-ND,MKDS10HV/3-ZB-10.16,MKDS10HV3ZB1016
Standard Package 50
Win Source Part Number 1332240-1709694
Ultra Librarian 3D Model Ultra Librarian 1709694 CAD Model

Description

The Phoenix Contact Wire to Board Terminal Block is a connector that has a pitch of 0.400 inches (10.16mm) and a number of positions of 3.

  • Pitch: 0.400 inches (10.16mm)
  • Positions: 3
  • Wire Gauge Range: 6-20 AWG
  • Voltage Rating: 600V
  • Current Rating: 60A
  • Termination Style: Screw-rising cage clamp
  • Mounting: Through hole
  • Mating Orientation: Horizontal with the board
  • Housing Material: Polyamide (PA) and nylon
  • Torque: 1.2-1.5 Nm (10.6-13.3 Lb-In)
  • Screw Thread: M4
  • Features: Interlocking on the side
