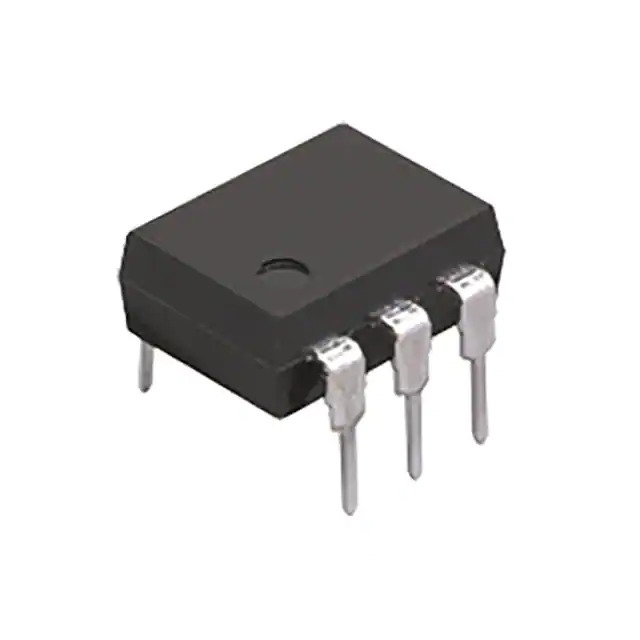

AQV209G Panasonic
Same model may have multiple batches, images only for reference.

AQV209G

Part No AQV209G
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY DPST-NO 750MA 0-1200V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic Electric Works
Series PhotoMOS™ AQV
Package Tube
Product Status Active
Mounting Type Through Hole
Circuit DPST-NO (2 Form A)
Output Type AC, DC
Voltage - Input -
Voltage - Load 0 V ~ 1200 V
Load Current 750 mA
On-State Resistance (Max) 2 Ohms
Termination Style PC Pin
Package / Case 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Base Product Number AQV209
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1372017-AQV209G
Ultra Librarian 3D Model Ultra Librarian AQV209G CAD Model

Description

The Panasonic Electric Works PhotoMOS™ AQV209G is a solid-state relay with a DPST-NO (2 Form A) circuit configuration.

  • Mounting Type: Through Hole
  • Voltage Load: 0 V to 1200 V
  • On-State Resistance: 2 Ohms
  • Load Current: 750 mA
  • Package: 6-DIP
  • Output Type: AC/DC
  • Series: PhotoMOS™ AQV
