1412844

Part No 1412844
Manufacturer Phoenix Contact
Catalog Heavy Duty Connectors

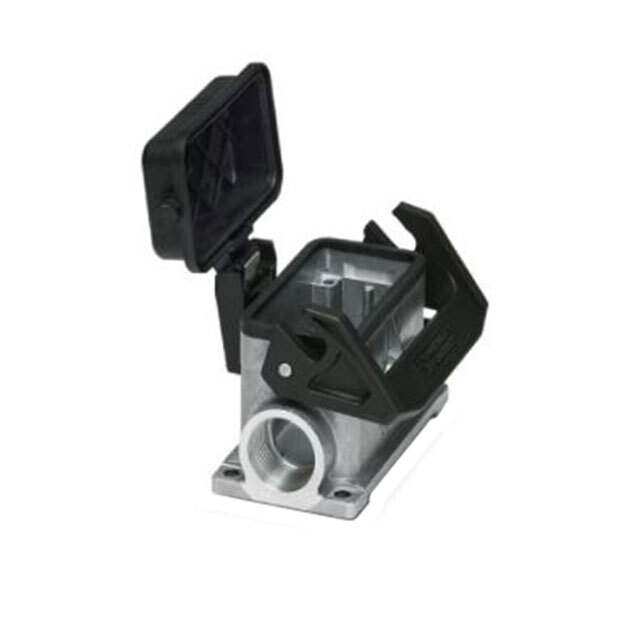

Description CONN BASE SIDE ENTRY SZB10 M20
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309929-1412844
Manufacturer Phoenix Contact
Category Connectors, Interconnects > Heavy Duty Connectors > Heavy Duty Connector Housings, Hoods, Bases
Packaging Bulk
Part Status Active
Connector Type Base - Box Mount
Style Side Entry
Size B10
Lock Location Locking Clip (1) on Base Bottom
Thread Size M20
Size / Dimension 3.622" L x 2.047" W x 2.150" H (92.00mm x 52.00mm x 54.60mm)
Features Cover, Feed Through, Salt Water Resistant
Housing Material Aluminum, Die Cast
Operating Temperature -40°C ~ 125°C
Ultra Librarian 3D Model Ultra Librarian 1412844 CAD Model

Description

Base - Box Mount Connector Side Entry M20 B10 IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof
