Same model may have multiple batches, images only for reference.

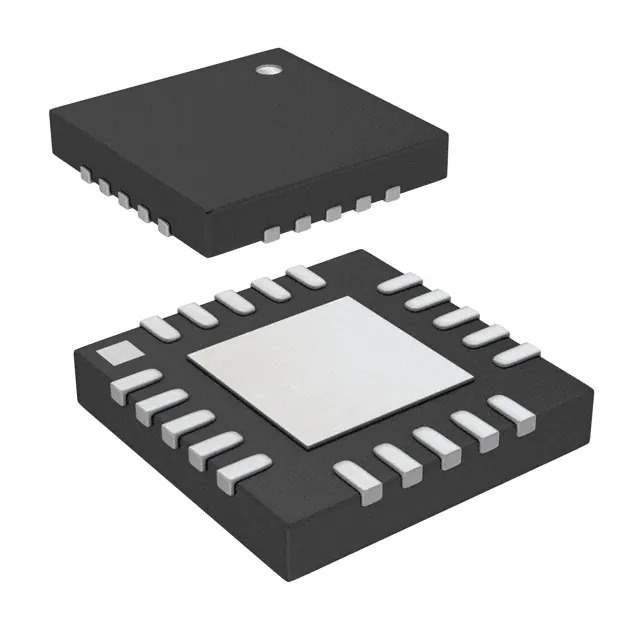

PE4314A-Z Real Image
Same model may have multiple batches, images only for reference.

PE4314A-Z

Part No PE4314A-Z
Manufacturer Peregrine Semiconductor
Catalog Attenuators
Description RF ATTENUATOR 31.5DB 75OHM 20QFN
Datasheet
PE4314A-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Attenuators
Mfr Peregrine Semiconductor
Series UltraCMOS®
Package Tape & Reel
Product Status Discontinued
Attenuation Value 31.5dB
Frequency Range 1 MHz ~ 2.5 GHz
Impedance 75 Ohms
Package / Case 20-VFQFN Exposed Pad
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 654116-PE4314A-Z
Ultra Librarian 3D Model Ultra Librarian PE4314A-Z CAD Model

Description

The 654116-PE4314A-Z is an RF and Wireless Attenuator from the UltraCMOS® series by Peregrine Semiconductor.

  • Frequency Range: 1 MHz to 2.5 GHz
  • Attenuation Value: 31.5dB
  • Package/Case: 20-VFQFN Exposed Pad
  • Impedance: 75 Ohms
  • Packaging: Tape and Reel
  • Standard Package Quantity: 3,000 pcs
  • Status: Discontinued
