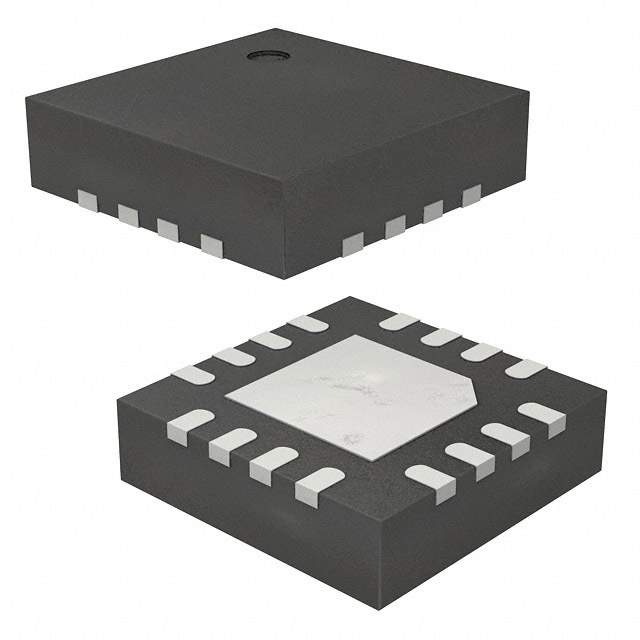

PE42822A-Z Real Image
Same model may have multiple batches, images only for reference.

PE42822A-Z

Part No PE42822A-Z
Manufacturer Peregrine Semiconductor
Catalog RF Switches
Description IC RF SWITCH SPDT
Datasheet
PE42822A-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Peregrine Semiconductor
Packaging Reel - TR
Status Active
Frequency - Lower 700MHz
Frequency - Upper 3.8GHz
Isolation @ Frequency 44dB @ 3GHz
Insertion Loss @ Frequency 0.8dB @ 3GHz
IIP3 65dBm (typ)
Topology Absorptive
Circuit SPDT
Temperature Range - Operating -40°C to 105°C
Supply Voltage - Operating 2.3 V to 5.5 V
RF Type Cellular
Case / Package 16-QFN (3x3)
Win Source Part Number 1087316-PE42822A-Z
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PE42822A-Z CAD Model

Description

The Peregrine Semiconductor PE42822A-Z is a SPDT absorptive switch circuit that operates within the frequency range of 700MHz to 3.8GHz.

  • Frequency Range: 700MHz to 3.8GHz
  • Isolation: 44dB @ 3GHz
  • Insertion Loss: 0.8dB @ 3GHz
  • IIP3: 65dBm
  • Application: Cellular RF
  • Temperature Range: -40°C to 105°C
  • Package: 16-QFN (3x3)
  • Supply Voltage: 2.3V to 5.5V
  • Status: Active
  • Category: RF/IF and RFID
