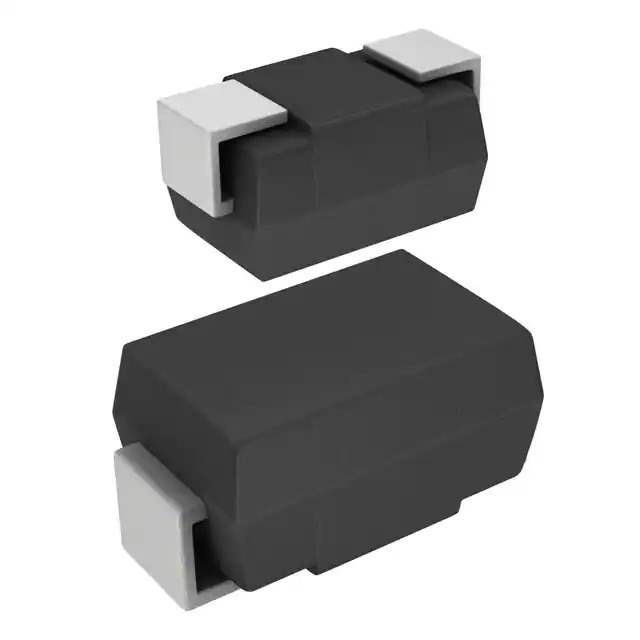

Part No SR23_R1_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 2A SMA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Panjit
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 500 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 30 V
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package SMA (DO-214AC)
Operating Temperature - Junction -55°C ~ 125°C
Base Product Number SR23
Standard Package 1,800 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 838679-SR23_R1_00001
Ultra Librarian 3D Model Ultra Librarian SR23_R1_00001 CAD Model

Description

The SR23 is a Schottky diode with a maximum reverse voltage of 30V and an average rectified current of 2A.

  • Maximum Reverse Voltage: 30V
  • Average Rectified Current: 2A
  • Forward Voltage Drop: 500mV @ 2A
  • Reverse Leakage Current: 200μA @ 30V
  • Suitable For: applications that require fast switching and low power loss
  • Package: surface mount DO-214AC (SMA) package
  • Compatibility: tape and reel compatible
  • Product Line: Panjit's active product lineup
  • Operating Temperature: -55°C to 125°C
  • Commonly Used In: power supplies, voltage regulators, and battery charging circuits
