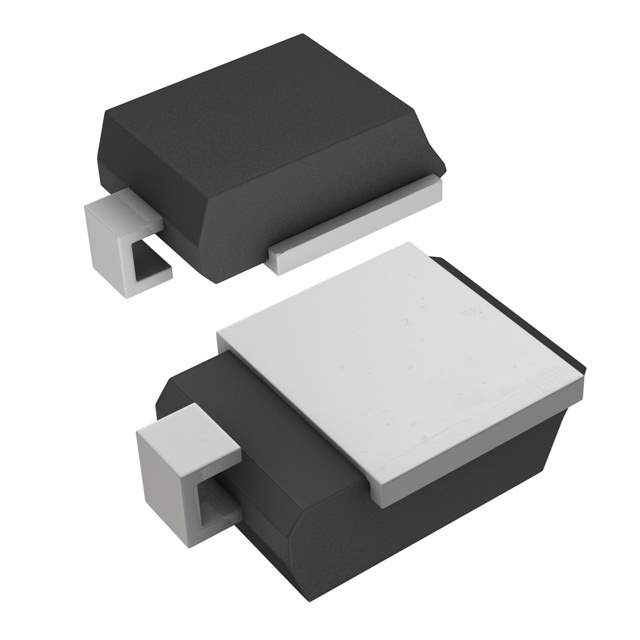

SM6S22A-AU_R2_000A1

Name: SM6S22A-AU_R2_000A1
Brand: Panjit
SKU: 990423
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SM6S22A-AU_R2_000A1
Manufacturer	Panjit
Catalog	TVS - Diodes
Description	4.6KW SURFACE MOUNT TRANSIENT VO / 35.5V Clamp 130A Ipp Tvs Diode Surface Mount DO-218AB
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Panjit International Inc.
Series	Automotive, AEC-Q101
Package	Tape & Reel
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	22V
Voltage - Breakdown (Min)	24.4V
Voltage - Clamping (Max) @ Ipp	35.5V
Current - Peak Pulse (10/1000µs)	130A
Power - Peak Pulse	4600W (4.6kW)
Power Line Protection	No
Applications	Automotive
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	SMD (SMT)
Package / Case	DO-218AB
Supplier Device Package	DO-218AB
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	3757-SM6S22A-AU_R2_000A1TR,3757-SM6S22A-AU_R2_000A1CT,3757-SM6S22A-AU_R2_000A1DKR
Standard Package	600
Win Source Part Number	990423-SM6S22A-AU_R2_000A1
Ultra Librarian 3D Model	Ultra Librarian SM6S22A-AU_R2_000A1 CAD Model

Alternative Products

Description

The SM6S22A-AU_R2_000A1 is an automotive series unidirectional TVS diode manufactured by Panjit International Inc.

Reverse Standoff Voltage: 22V
Breakdown Voltage: 24.4V
Peak Pulse Power: 4.6kW
Peak Pulse Current: 130A
Package: DO-218AB
Packaging: Tape and Reel
Operating Temperature Range: -55°C to 175°C
AEC-Q101 Compliant: Yes
Application: Automotive
