Same model may have multiple batches, images only for reference.

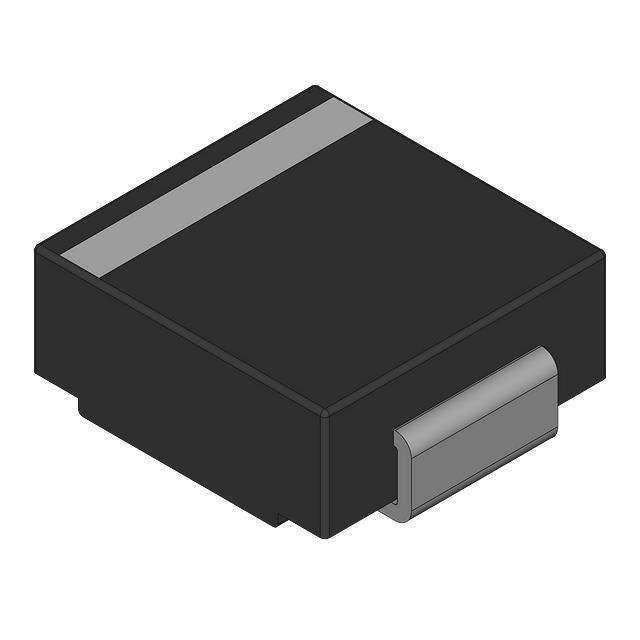

SK36_R1_00001 Real Image
Same model may have multiple batches, images only for reference.

SK36_R1_00001

Part No SK36_R1_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description SMC, SKY
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 15 Weeks
Features Diode Schottky 60 V 3A Surface Mount SMC/DO-214AB
Manufacturer Panjit
Package Reel - TR
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package DO-214AB, SMC
Case / Package SMC/DO-214AB
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 3757-SK36_R1_00001TR, 3757-SK36_R1_00001CT, 3757-SK36_R1_00001DKR
Quantity per package 800
Popularity High
Supply and Demand Status Balance
Win Source Part Number 895227-SK36_R1_00001
Ultra Librarian 3D Model Ultra Librarian SK36_R1_00001 CAD Model

Description

The Panjit SK36_R1_00001 is a Schottky diode that is commonly used in various electronic devices. It has a voltage rating of 60V and a current rating of 3A, making it suitable for a wide range of applications.

  • Forward Voltage Drop: low
  • Package: surface mount
  • Standard Package: 800
  • Supply and Demand Status: balanced
