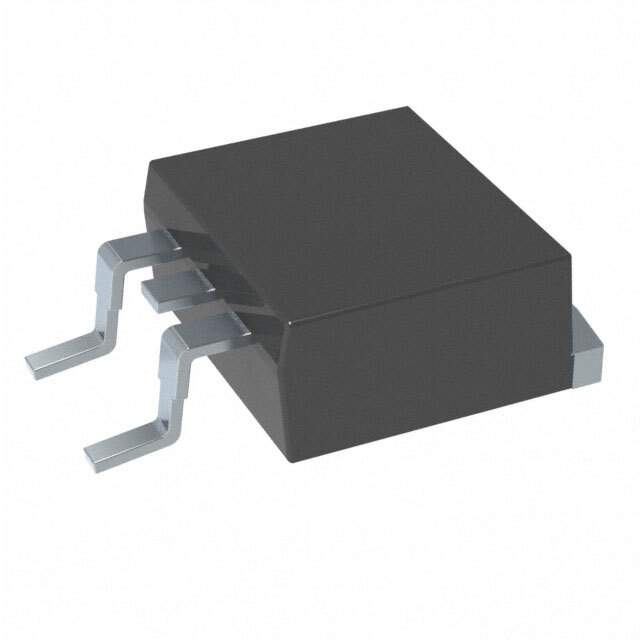

SBM1060VDC_R2_00001 Real Image
Same model may have multiple batches, images only for reference.

SBM1060VDC_R2_00001

Part No SBM1060VDC_R2_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Arrays
Description ULTRA LOW VF SCHOTTKY RECTIFIER  /  Diode Array 1 Pair Common Cathode Schottky 60 V 5A Surface Mount TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Panjit International Inc.
Package Tape & Reel
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) (per Diode) 5A
Voltage - Forward (Vf) (Max) @ If 520 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 220 µA @ 60 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting SMD (SMT)
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-SBM1060VDC_R2_00001DKR,3757-SBM1060VDC_R2_00001CT,3757-SBM1060VDC_R2_00001TR
Standard Package 800
Win Source Part Number 1091361-SBM1060VDC_R2_00001
Ultra Librarian 3D Model Ultra Librarian SBM1060VDC_R2_00001 CAD Model

Description

The Panjit 1091361-SBM1060VDC_R2_00001 is a Schottky diode with a voltage - DC reverse (Vr) (Max) of 60V and voltage - forward (Vf) (Max) @ If of 520 mV @ 5 A.

  • Voltage - DC Reverse (Vr) (Max): 60V
  • Voltage - Forward (Vf) (Max) @ If: 520 mV @ 5 A
  • Current - Reverse Leakage @ Vr: 220 μA @ 60 V
  • Current - Average Rectified (Io) (per diode): 5A
  • Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Supplier Device Package: TO-263
  • Power - Peak Pulse: 4600W (4.6kW)
  • Temperature Range - Operating: -55°C ~ 150°C (TJ)
  • Manufacturer: Panjit International Inc.
