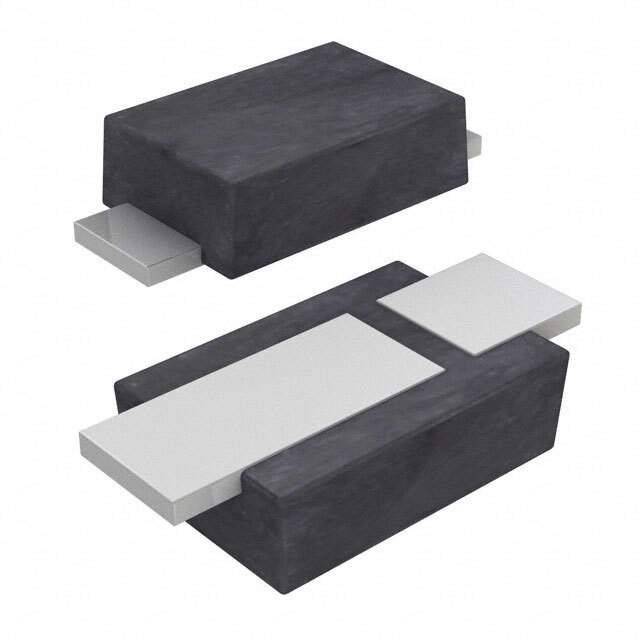

SB3H60AH_R1_00001 Real Image
Same model may have multiple batches, images only for reference.

SB3H60AH_R1_00001

Part No SB3H60AH_R1_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description SCHOTTKY BARRIER RECTIFIER / Diode Schottky 60 V 3A Surface Mount SOD-123HE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Panjit International Inc.
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5 µA @ 60 V
Capacitance @ Vr, F 150pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case SOD-123H
Supplier Device Package SOD-123HE
Operating Temperature - Junction -55°C ~ 175°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-SB3H60AH_R1_00001TR,3757-SB3H60AH_R1_00001CT,3757-SB3H60AH_R1_00001DKR
Standard Package 3,000
Win Source Part Number 1126994-SB3H60AH_R1_00001
Ultra Librarian 3D Model Ultra Librarian SB3H60AH_R1_00001 CAD Model

Description

The Panjit SB3H60AH_R1_00001 is a SOD-123H package schottky diode manufactured by Panjit.

  • DC Reverse Voltage: It has a voltage - DC reverse (Vr) (Max) of 60 V
  • Average Rectified Current: with an average rectified current (Io) of 3A
  • Forward Voltage: a forward voltage (Vf) (Max) @ If of 700 mV @ 3 A.
  • Operating Temperature: The operating temperature range is from -55°C to 175°C.
  • RoHS Compliant: This diode is RoHS compliant
  • MSL Level: has unlimited MSL level.
  • Application: It is commonly used in discrete semiconductor products applications.
