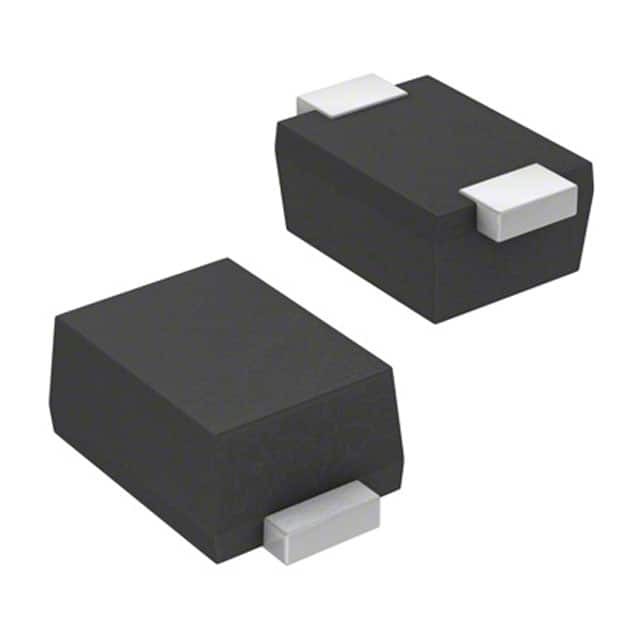

Part No PJSD15TM_R1_00001
Manufacturer Panjit
Catalog TVS - Diodes
Description ESD PROTECTION DIODES / 30V Clamp 2A Ipp Tvs Diode Surface Mount SOD-923
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Panjit International Inc.
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 15V (Max)
Voltage - Breakdown (Min) 17V
Voltage - Clamping (Max) @ Ipp 30V
Current - Peak Pulse (10/1000µs) 2A
Power - Peak Pulse 40W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 15pF @ 1MHz (Max)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case SOD-923
Supplier Device Package SOD-923
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-PJSD15TM_R1_00001CT,3757-PJSD15TM_R1_00001TR,3757-PJSD15TM_R1_00001DKR
Standard Package 8,000
Win Source Part Number 1085324-PJSD15TM_R1_00001
Ultra Librarian 3D Model Ultra Librarian PJSD15TM_R1_00001 CAD Model

Description

The Panjit PJSD15TM_R1_00001 is a unidirectional TVS diode designed for general-purpose applications.

  • Breakdown Voltage: 17V
  • Clamping Voltage: 30V @ 2A
  • Application: Fast Recovery
  • Peak Pulse Power: 40W
  • Capacitance: 15pF @ 1MHz (Max)
  • Operating Temperatures: -55°C to 150°C (TJ)
  • ECCN: EAR99
  • Package: SOD-923
  • Mounting: SMD (SMT) technology
  • Packaging: Tape and Reel
  • Standard Package: 8,000 units
