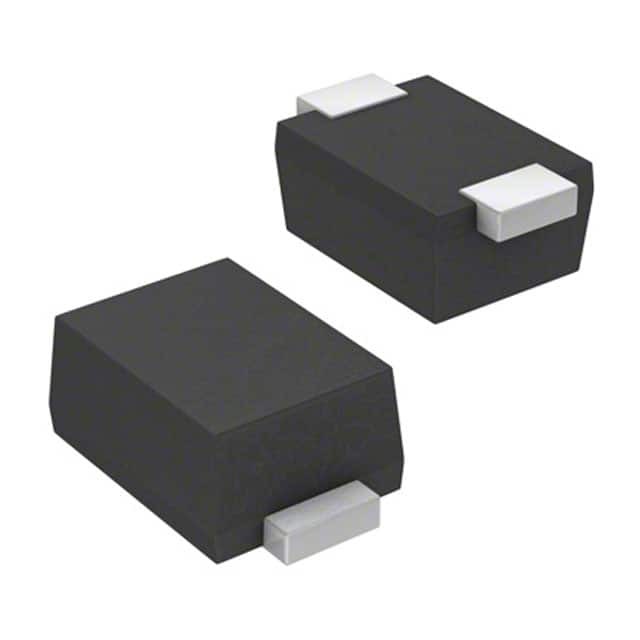

Part No PJSD07TM_R1_00001
Manufacturer Panjit
Catalog TVS - Diodes
Description ESD PROTECTION DIODES  /  15V Clamp 4A Ipp Tvs Diode Surface Mount SOD-923
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Panjit International Inc.
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 7V (Max)
Voltage - Breakdown (Min) 7.5V
Voltage - Clamping (Max) @ Ipp 15V
Current - Peak Pulse (10/1000µs) 4A
Power - Peak Pulse 40W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 30pF @ 1MHz (Max)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case SOD-923
Supplier Device Package SOD-923
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-PJSD07TM_R1_00001DKR,3757-PJSD07TM_R1_00001TR,3757-PJSD07TM_R1_00001CT
Standard Package 8,000
Win Source Part Number 1085322-PJSD07TM_R1_00001
Ultra Librarian 3D Model Ultra Librarian PJSD07TM_R1_00001 CAD Model

Description

The PJSD07TM_R1_00001 is a Zener type diode used for circuit protection.

  • Package: Tape and Reel
  • Standard Package: 8,000
  • Mounting: SMD (SMT)
  • Channel Type: Unidirectional
  • Voltage - Reverse Standoff (Typ): 7V (Max)
  • Voltage - Breakdown (Min): 7.5V
  • Voltage - Clamping (Max) @ Ipp: 15V
  • Power - Peak Pulse: 40W
  • Capacitance: 30pF @ 1MHz (Max)
  • Peak Pulse Current: 4A (10/1000µs)
  • Package / Case: SOD-923
  • Operating Temperature Range: -55°C ~ 150°C (TJ)
