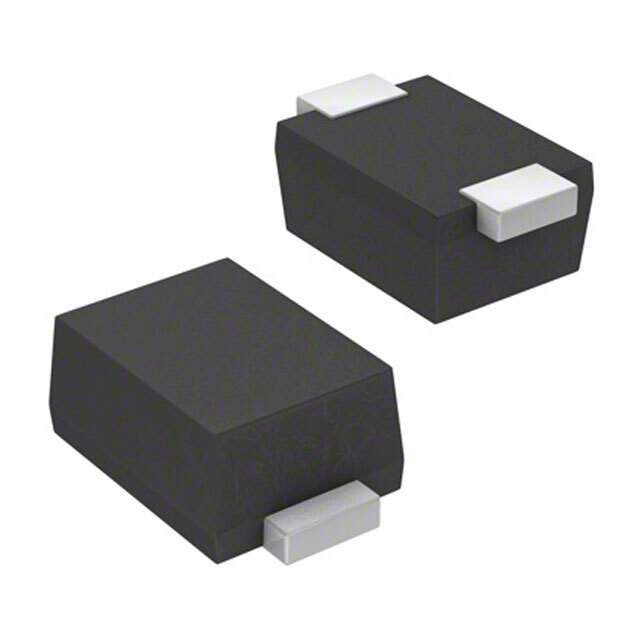

The PJSD07TM is a Transient Voltage Suppressor (TVS) diode manufactured by Panjit. It is designed to protect sensitive electronic components from electrostatic discharge (ESD) and other transient voltage events. The PJSD07TM features a fast response time and low clamping voltage, making it suitable for protecting data lines, I/O ports, and other vulnerable circuits.

Applications:

• Data lines: Protection against ESD for high-speed data transmission lines.
• Microcontroller I/O ports: Safeguards microcontroller input/output pins.
• Portable devices: ESD protection in smartphones, tablets, and other mobile devices.
• Interface protection: Protection for USB, HDMI, Ethernet, and other interface ports.
• General electronic equipment: Transient voltage protection in various electronic devices.

Features:

• Low clamping voltage: Limits the voltage across the protected device during a transient event.
• Fast response time: Quickly clamps transient voltages to protect components.
• Small package size: Allows for compact PCB designs.
• Low leakage current: Minimizes power consumption in standby mode.
• RoHS compliant: Compliant with environmental regulations.

Benefits:

• Improved system reliability: Protects against ESD damage, increasing the lifespan of electronic devices.
• Reduced downtime: Prevents failures caused by transient voltage events.
• Enhanced product quality: Ensures consistent performance and reliability.
• Simplified design: Easy to integrate into existing circuit designs.
• Cost-effective protection: Provides a reliable and affordable ESD protection solution.

Technical Specifications: The PJSD07TM typically has a standoff voltage around 7V. The specific clamping voltage and peak pulse power handling capability will depend on the test conditions and waveform used. The device is usually available in a small surface-mount package, such as a SOD-323 or similar. Refer to the Panjit datasheet for detailed specifications regarding breakdown voltage, clamping voltage, and peak pulse current.

The Panjit PJSD07TM TVS diode provides robust protection against ESD and transient voltage events, making it an excellent choice for protecting sensitive electronic components. Its fast response time, low clamping voltage, and compact size make it suitable for a wide range of applications.
