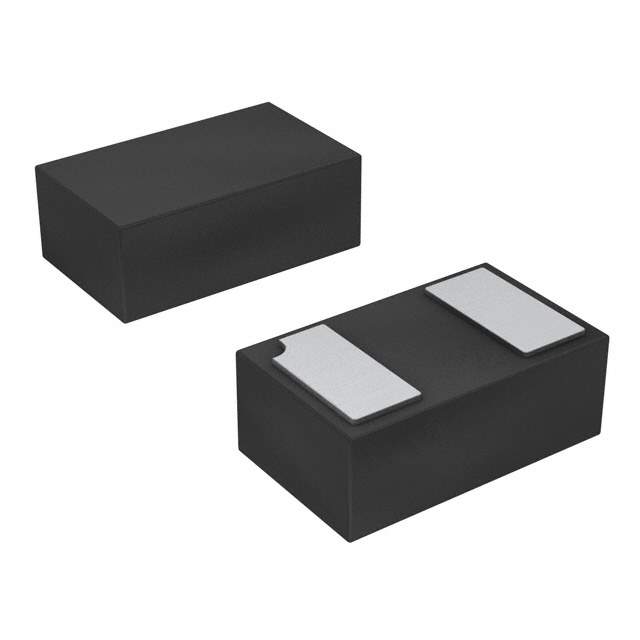

PJE24VM5FN2_R1_00001 Real Image
Same model may have multiple batches, images only for reference.

PJE24VM5FN2_R1_00001

Part No PJE24VM5FN2_R1_00001
Manufacturer Panjit
Catalog TVS - Diodes
Description ESD PROTECTION / 40V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 2-DFN (1x0.6)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Panjit International Inc.
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V (Max)
Voltage - Breakdown (Min) 25V
Voltage - Clamping (Max) @ Ipp 40V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 100W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 50pF @ 1MHz (Max)
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 0402 (1006 Metric)
Supplier Device Package 2-DFN (1x0.6)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-PJE24VM5FN2_R1_00001DKR,3757-PJE24VM5FN2_R1_00001CT,3757-PJE24VM5FN2_R1_00001TR
Standard Package 8,000
Win Source Part Number 1085261-PJE24VM5FN2_R1_00001
Ultra Librarian 3D Model Ultra Librarian PJE24VM5FN2_R1_00001 CAD Model

Description

The Panjit International Inc. 1085261-PJE24VM5FN2_R1_00001 is a TVS-Diode Zener type that is useful for Circuit Protection.

  • Voltage - Reverse Standoff (Typ): 24V (Max)
  • Voltage - Breakdown (Min): 25V
  • Voltage - Clamping (Max) @ Ipp: 40V
  • Power - Peak Pulse: 100W
  • Channels: Unidirectional 1
  • Capacitance @ Frequency: 50pF @ 1MHz (Max)
  • Operating Temperature: -55°C ~ 125°C (TJ)
  • Package / Case: 0402 (1006 Metric)
  • Supplier Device Package: 2-DFN (1x0.6)
  • Standard Package: 8,000
  • Mounted: SMD (SMT)
