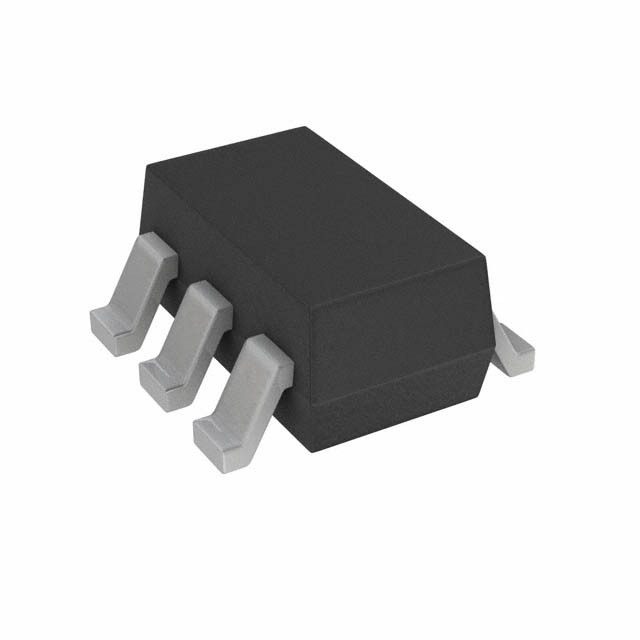

Same model may have multiple batches, images only for reference.
PJ4L40W6_R1_00001 Panjit – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PJ4L40W6_R1_00001

Part No PJ4L40W6_R1_00001
Manufacturer Panjit
Catalog TVS - Diodes
Description Clamp Ipp Tvs Diode Surface Mount SOT-23-6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Panjit International Inc.
Packaging Reel - TR
Type Steering (Rail to Rail)
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 25V (Max)
Voltage - Breakdown (Min) 30V
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 19pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case SOT-23-6
Supplier Device Package SOT-23-6
Base Product Number PJ4L40
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1477463-PJ4L40W6_R1_00001
Ultra Librarian 3D Model Ultra Librarian PJ4L40W6_R1_00001 CAD Model
