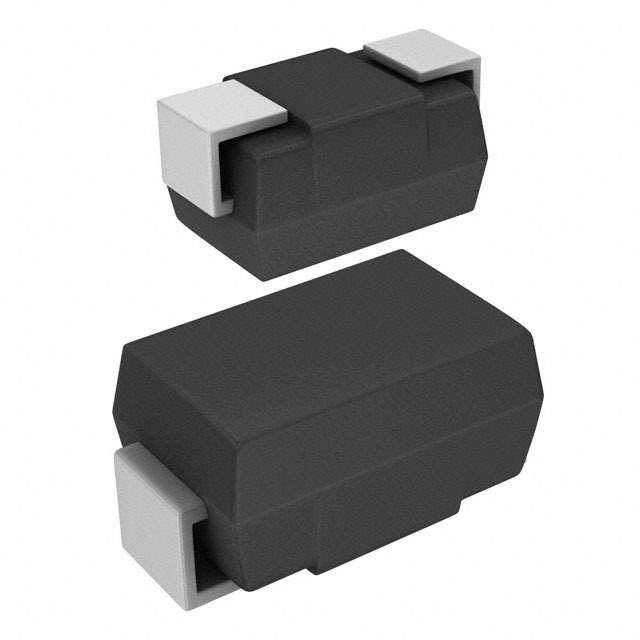

P4SMAJ200AS_R1_00001 Real Image
Same model may have multiple batches, images only for reference.

P4SMAJ200AS_R1_00001

Part No P4SMAJ200AS_R1_00001
Manufacturer Panjit
Catalog TVS - Diodes
Description SURFACE MOUNT TRANSIENT VOLTAGE / 324V Clamp 1.2A Ipp Tvs Diode Surface Mount SMA (DO-214AC)
Datasheet
P4SMAJ200AS_R1_00001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Panjit International Inc.
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 200V
Voltage - Breakdown (Min) 220V
Voltage - Clamping (Max) @ Ipp 324V
Current - Peak Pulse (10/1000µs) 1.2A
Power - Peak Pulse 400W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case DO-214AC, SMA
Supplier Device Package SMA (DO-214AC)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-P4SMAJ200AS_R1_00001DKR,3757-P4SMAJ200AS_R1_00001TR,3757-P4SMAJ200AS_R1_00001CT
Standard Package 1,800
Win Source Part Number 1153594-P4SMAJ200AS_R1_00001
Ultra Librarian 3D Model Ultra Librarian P4SMAJ200AS_R1_00001 CAD Model

Description

The P4SMAJ200AS_R1_00001 is a TVS-Diode Circuit Protection electronic component manufactured by Panjit International Inc.

  • Channel Type: Unidirectional
  • Voltage Reverse Standoff (typ): 200V
  • Voltage Breakdown (min): 220V
  • Power Peak Pulse: 400W
  • Current Peak Pulse (10/1000µs): 1.2A
  • Halogen-Free: Yes
  • Temperature Range: -55°C to 150°C (TJ)
