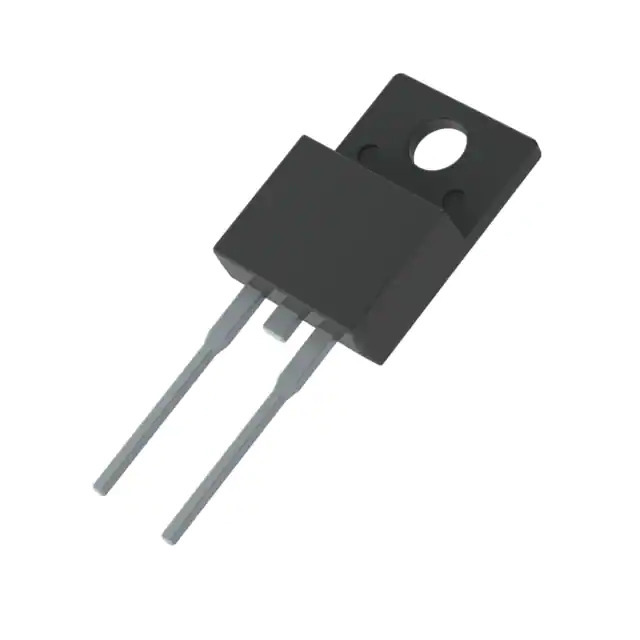

Same model may have multiple batches, images only for reference.
MBR6200F_T0_00001 Panjit
Same model may have multiple batches, images only for reference.

MBR6200F_T0_00001

Part No MBR6200F_T0_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 200V 6A ITO220AC
Datasheet
MBR6200F_T0_00001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Panjit International Inc.
Series -
Package Tube
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 6A
Voltage - Forward (Vf) (Max) @ If 900 mV @ 6 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 200 V
Capacitance @ Vr, F -
Mounting Type Through Hole
Package / Case TO-220-2 Full Pack, Isolated Tab
Supplier Device Package ITO-220AC
Operating Temperature - Junction -65°C ~ 175°C
Base Product Number MBR6200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367214-MBR6200F_T0_00001
Ultra Librarian 3D Model Ultra Librarian MBR6200F_T0_00001 CAD Model

Description

The MBR6200F_T0_00001 is a Schottky diode manufactured by Panjit International Inc.

  • Diode Type: Single Rectifier
  • Package: TO-220-2 Full Pack, Isolated Tab (ITO-220AC)
  • Mounting Type: Through-Hole
  • Maximum Reverse Voltage (Vr): 200 V
  • Average Rectified Current (Io): 6 A
  • Forward Voltage (Vf): 900 mV @ 6 A
  • Recovery Time: < 500 ns
  • Reverse Leakage Current: 50 μA @ 200 V
  • Operating Temperature: -65°C to 175°C
