The MBR30H150FCT_T0 is a Schottky Barrier Rectifier manufactured by Panjit. This device is designed for use in switching power supplies, inverters, and as freewheeling diodes. It features a high surge current capability, low forward voltage drop, and is optimized for high-frequency operation.

Applications:

• Switching Mode Power Supplies (SMPS)
• DC-DC Converters
• Freewheeling diodes in inductive loads
• Polarity protection circuits
• High-frequency inverters

Features:

• High surge current capability
• Low forward voltage drop to minimize power loss
• High-frequency operation
• High reliability
• RoHS compliant

Benefits:

• Increased efficiency in power supplies and converters
• Reduced heat dissipation due to low forward voltage drop
• Enhanced system reliability due to surge protection
• Environmentally friendly due to RoHS compliance
• Suitable for high-frequency applications

Detailed Specs:

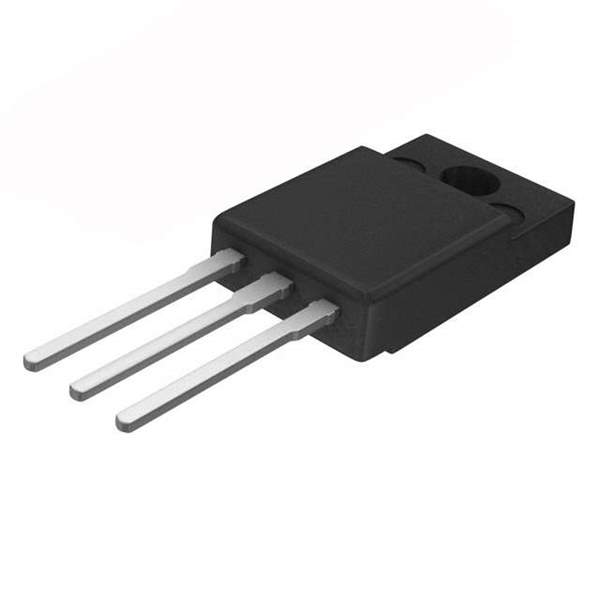

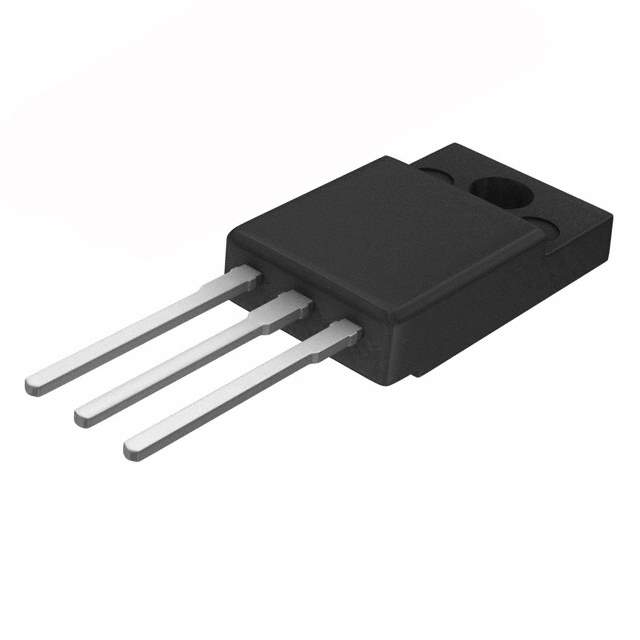

The MBR30H150FCT_T0 features a maximum repetitive peak reverse voltage of 150V and a maximum average forward rectified current of 30A. The forward voltage drop is typically around 0.8V at 15A. It is packaged in a TO-220 package for efficient heat dissipation. The operating junction temperature ranges from -65°C to +175°C. Its high surge current capability allows it to handle transient voltage spikes effectively. The low reverse leakage current at elevated temperatures ensures stable performance. This rectifier is particularly well-suited for applications requiring a balance of high current handling and low power loss.

In summary, the MBR30H150FCT_T0 from Panjit offers a robust and efficient solution for high-frequency rectification and power management applications. Its key features include a high surge current capability, low forward voltage drop, and suitability for high-frequency operation, making it an excellent choice for various power electronics designs.
