Same model may have multiple batches, images only for reference.

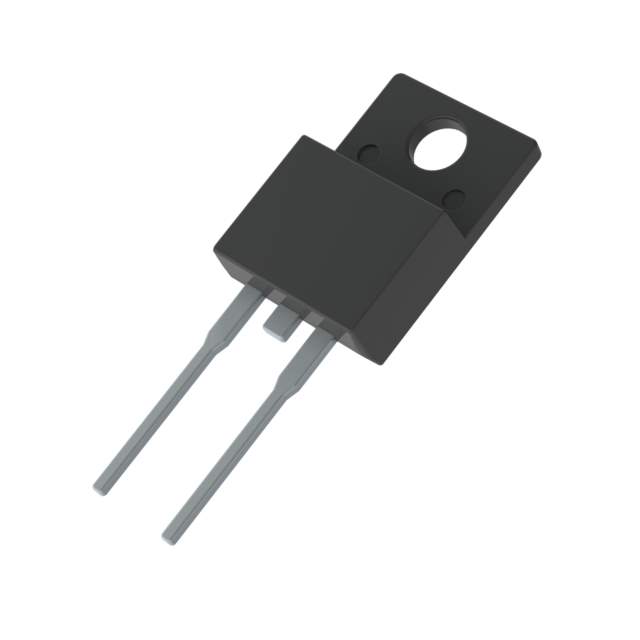

MBR10100F_T0_00001 Real Image
Same model may have multiple batches, images only for reference.

MBR10100F_T0_00001

Part No MBR10100F_T0_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description 10 AMPERES SCHOTTKY BARRIER RECT / Diode Schottky 100 V 10A Through Hole ITO-220AC
Datasheet
MBR10100F_T0_00001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Panjit International Inc.
Package Tube
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Max) @ If 800 mV @ 10 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 100 V
Mounting Type Through Hole
Package / Case TO-220-2 Full Pack, Isolated Tab
Supplier Device Package ITO-220AC
Operating Temperature - Junction -65°C ~ 175°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-MBR10100F_T0_00001
Standard Package 50
Win Source Part Number 1076483-MBR10100F_T0_00001
Ultra Librarian 3D Model Ultra Librarian MBR10100F_T0_00001 CAD Model

Description

The Panjit MBR10100F_T0_00001 is a fast recovery Schottky diode with a voltage - DC reverse (Vr) (Max) of 100V and a current - average rectified (Io) of 10A.

  • Voltage - DC Reverse (Vr) (Max): 100V
  • Current - Average Rectified (Io): 10A
  • Voltage - Forward (Vf) (Max) @ If: 800mV @ 10A
  • Current - Reverse Leakage @ Vr: 50µA @ 100V
  • RoHS Compliant: Yes
  • Radiation Hardening: No
  • Mounting Type: Through Hole
  • Package/Case: TO-220-2 Full Pack, Isolated Tab
  • Standard Package: 50
  • ECCN: EAR99
  • HTSUS: 8541.10.0080
  • Alternative Part (cross-reference): Yes
