Same model may have multiple batches, images only for reference.

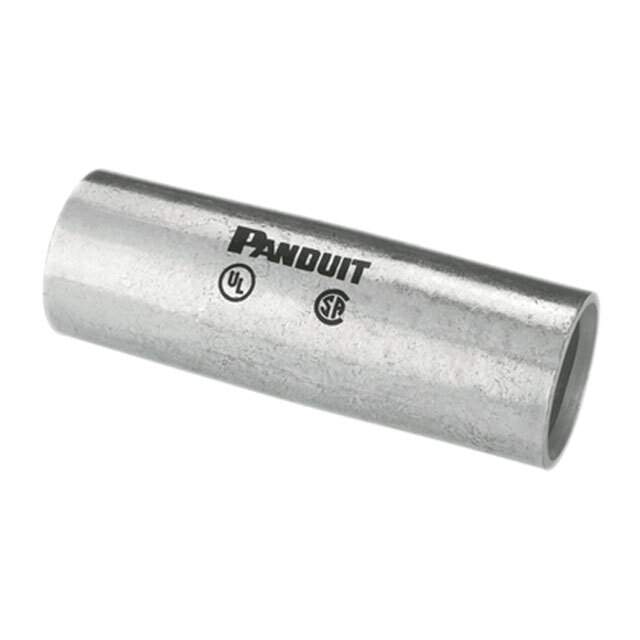

SCMSX16-C Real Image
Same model may have multiple batches, images only for reference.

SCMSX16-C

Part No SCMSX16-C
Manufacturer Panduit Corp
Catalog Terminals
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Wire Splice Connectors
Mfr Panduit Corp
Package Bulk
Product Status Obsolete
Terminal Type Butt Splice, Inline, Individual Openings
Number of Wire Entries 2
Termination Crimp
Wire Gauge 16mm²
Insulation Non-Insulated
Other Names 07498348231
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285112-SCMSX16-C
Ultra Librarian 3D Model Ultra Librarian SCMSX16-C CAD Model

Description

The Panduit Corp 1285112-SCMSX16-C is a non-insulated butt splice, inline, individual openings terminal connector.

  • Manufacturer: Panduit Corp
  • Insulation: non-insulated
  • Terminal Type: butt splice, inline, individual openings
  • Wire Entries: two
  • Wire Gauge: 16mm²
  • Termination: crimping
  • Package: bulk
  • Standard Package: 1
  • Application: connectors and interconnects, especially in wire splice connectors
  • ECCN: EAR99
  • HTSUS Code: 8536.90.4000
  • Status: obsolete
  • Other Names: 07498348231
