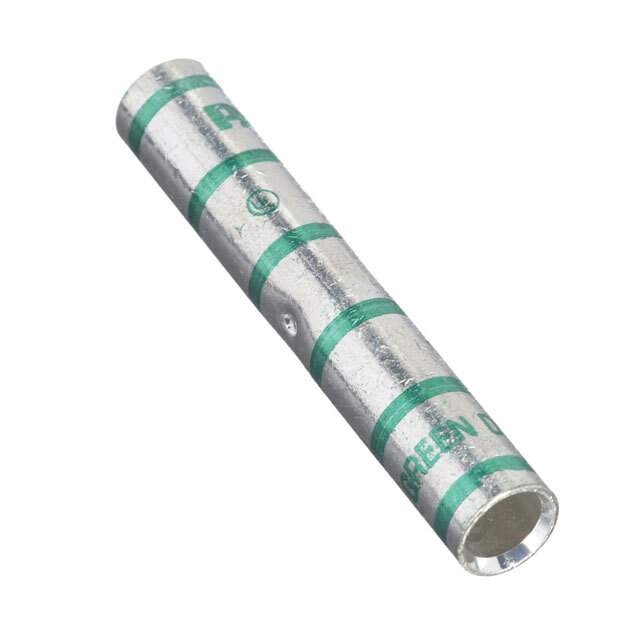

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Wire Splice Connectors
Mfr Panduit Corp
Series Pan-Lug®
Package Bulk
Terminal Type Butt Splice, Inline, Individual Openings
Number of Wire Entries 2
Termination Crimp
Wire Gauge 1-6 AWG
Insulation Non-Insulated
Color Green
Base Product Number SCL1
Other Names 07498390446,SCL1-E,298-15828
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285089-SCL1-E
Ultra Librarian 3D Model Ultra Librarian SCL1-E CAD Model

Description

The Panduit Corp 1285089-SCL1-E is a Pan-Lug® series wire splice connector with a green color.

  • Manufacturer: Panduit Corp
  • Part Number: 1285089-SCL1-E
  • Series: Pan-Lug®
  • Type: wire splice connector
  • Color: green
  • Termination: crimp
  • Wire Gauge: 1-6 AWG
  • Package: bulk
  • Standard Package: 1
  • Terminal Type: butt splice, inline, individual openings
  • Insulation: non-insulated
  • Wire Entries: two
  • ECCN: EAR99
  • MSL Level: not applicable
  • REACH: unaffected
  • HTSUS: 8536.90.4000
