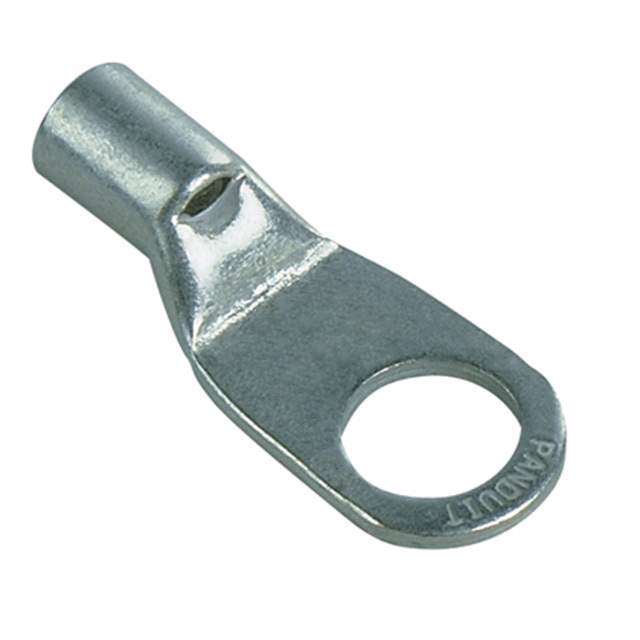

S8-14R-Q Real Image
Same model may have multiple batches, images only for reference.

S8-14R-Q

Part No S8-14R-Q
Manufacturer Panduit Corp
Catalog Terminals
Datasheet
S8-14R-Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Product Status Obsolete
Terminal Type Flat Sided
Stud/Tab Size 1/4 Stud
Thickness 0.070" (1.78mm)
Width - Outer Edges 0.480" (12.19mm)
Length - Overall 1.200" (30.48mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp, Funnel Opening
Wire Gauge 8 AWG
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Base Product Number S8-14
Other Names S8-14R-Q,298-11891
Standard Package 25
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285183-S8-14R-Q
Ultra Librarian 3D Model Ultra Librarian S8-14R-Q CAD Model

Description

The Panduit Corp Pan-Term S8-14R-Q is an obsolete ring connector terminal with a thickness of 0.070 inches and a width of outer edges of 0.480 inches.

  • Length Overall: 1.200 inches
  • Insulation: non-insulated
  • Stud/Tab Size: 1/4 stud
  • Mounting: free hanging (in-line) technology
  • Wire Gauge: 8 AWG
  • Contact Finish: tin
  • Category: Terminals - Ring Connectors
  • Series: Pan-Term
  • Packaging: bulk
  • Standard Package: 25
